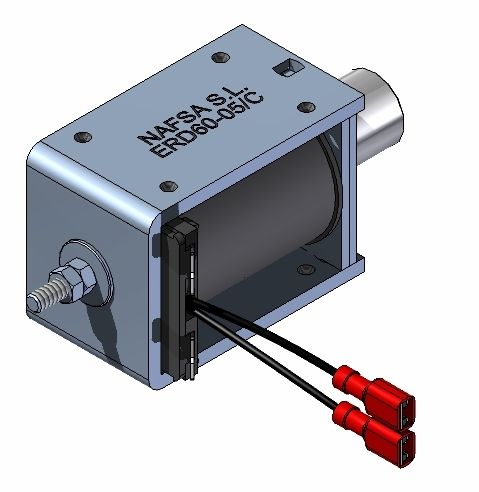

Linear solenoid ERD60-05/Csingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Other characteristics
- single-acting
- Voltage
24 V, 48 V, 110 V, 125 V, 230 V
- Stroke
Max.: 25 mm
(0.98 in)Min.: 0 mm
(0 in)
Description
ERD60-05/C TYPE
Description
Simple effect linear solenoids of the ERD serie have got a double coil, one of them with low resistive value (pulse coil) and the other one with high resistive value (holding coil).
It is used when a 100% duty cycle and a huge force at the begining of the stroke are needed.
Characteristics
- Protection rate: IP00
- Insulation class: B (130ºC)
- Standard voltage: Vdc (24V; 48V; 110V; 125V)
- Standard voltage: Vac (110V60Hz; 230V50Hz)
- Cycle duration: 3 minutes
- Working temperature: (from -10ºC to 65ºC)
- Work: pull/push
- Return spring incorporated: YES
- Plunger weight (g): 117
- Electromagnet weight (g): 720
