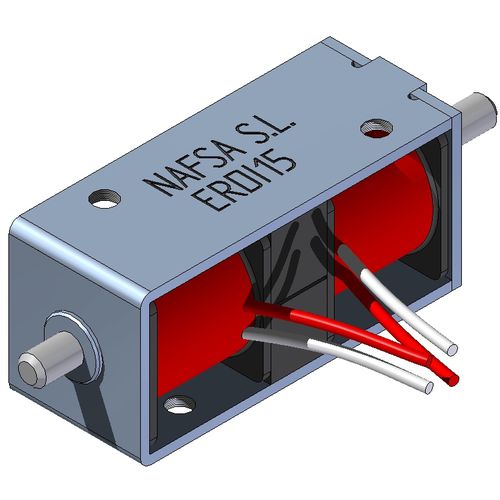

Linear solenoid ERDI15

bistablepolarized

ERDI15 TYPE Description This solenoid has two "off" positions, the stroke movement "s" from a position to the other one is made by a polarized electric signal, the plunger is retained en each final stroke position using permanent magnets. Characteristics - Protection rate: IP00 EN60529 -Insulation class: E (120ºC) - Standard voltage: from 6 to 12 Vdc - Under demand voltage: contact - Standard stroke "s": 5 mm - Resistance per coil at 20ºC: 8 Ohm - Initial force: 1,5 N - Holding force: 6 N - Plunger weight: 5 gr - Electromagnet weight: 40 gr
