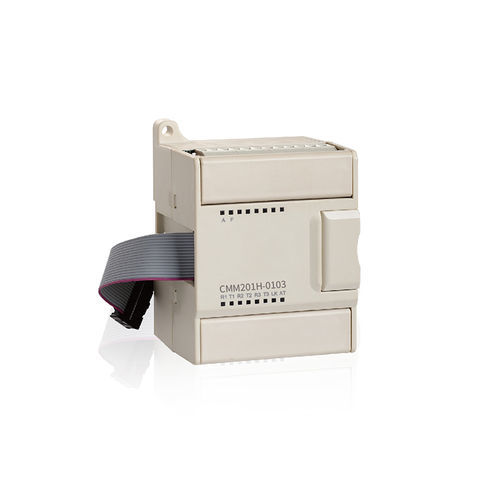

I/O expansion module CMM201H seriesEthernet
Add to favorites
Compare this product
Characteristics
- Options
- I/O
- Other characteristics
- Ethernet
Description
Output points - 1 - 1
Interface Type - Profibus DP slave - Ethernet (RJ45)
Protocol type - Profibus DP slave - MODBUS TCP slave
Configuration content - Station address 0-99 (set by DIP switch). The maximum number of stations per segment is 32. The manufacturer provides the GSD file for use with the CPU module. - The CPU module is used in conjunction with the IP address (factory default is 192.168.1.20), subnet mask, gateway IP, read and write data length, and interval.
Communication rate - 9600-12Mbps - 10/100Mbps
Physical properties
Dimensions (mm) - 75*90*68.5 - 75*90*68.5
Weight (g) - <160 - <160
Power consumption (MAX) - 80mA - 65mA
Operating temperature - -40 ℃ ~ +70℃ - -40 ℃ ~ +70℃
Storage temperature - -55 ℃ ~ +85℃ - -55 ℃ ~ +85℃
Relative humidity - 5%~95% (no condensation)
