Brushless motor DB80DC48 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 48 V
- Power
Max.: 942 W
(1.28 hp)Min.: 283 W
(0.38 hp)- Torque
Max.: 300 Nm
(221.268645 ft.lb)Min.: 90 Nm
(66.380593 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
80 mm
(3.15 in)
Description

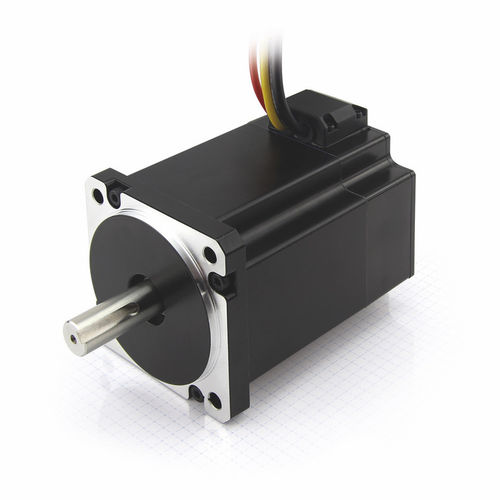

BLDC motor with flange size 80 x 80 mm, 8 poles and very high power density in relation to its size. With a rated speed of 3000 rpm and a rated voltage of 48 V, particularly suited for applications requiring high efficiency. Available with Hall sensors or with Hall sensors and integrated encoder. For higher torques high-performance planetary gears can be mounted. Available in various lengths and versions as well as customer-specific versions with other windings or shaft forms.
