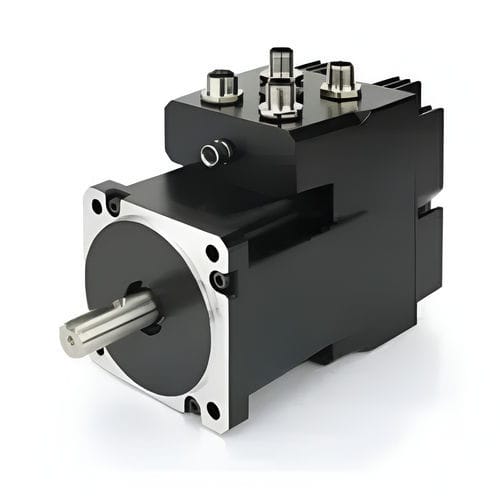

Brushless motor PD6-EBDC60 Vcompact
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 60 V
- Configuration
- compact
- Other characteristics
- CANopen, EtherCAT, ProfiNet
- Power
Min.: 283 W
(0.38 hp)Max.: 940 W
(1.28 hp)- Torque
Min.: 0.9 Nm
(0.663806 ft.lb)Max.: 3 Nm
(2.212686 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)
Description
The intelligent compact drives from Nanotec combine motor, controller and encoder in a space-saving package. With its 80 mm flange and a rated power of up to 942 W, the PD6-EB80C is the most powerful brushless DC motor of this product family.
• Controlled by fieldbus, clock & direction or analog/digital inputs
• Integrated singleturn absolute encoder, multiturn encoder optional
• Fieldbuses: CANopen, EtherCAT, Modbus RTU, Modbus TCP, PROFINET and EtherNet/IP
• Easy to parameterize via USB
• Simple programming with Plug & Drive Studio 3
• Highly profitable through reduced installation time and wiring effort
The PD6-EB is ideally suited for dynamic applications with fast acceleration, such as machine tools, printing heads, or camera positioning systems.
