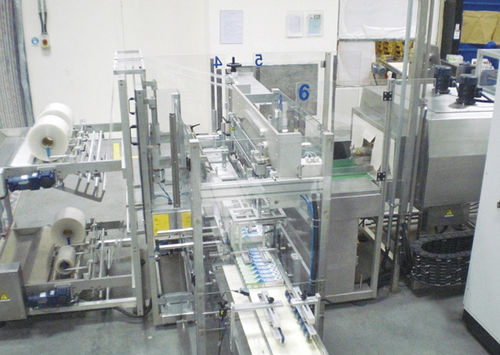

Automatic shrink wrapper RSS series

for cartonsfor heat-shrink filmscontinuous-motion

This machine adopts famous PLC, servo system, and touch screen etc, which can accurately control the movements of machine and it is also convenient to operate. Machine covers are transparent PC plate, which is convenient to observe the running state of the machine. The products from the upstream packaging machine enter the wrapper via the conveyer belt. In the wrapper, the products via feed, stack, impelling, tucker, film wrapping, thermal shrink and outfeed processes to complete the automatic production. Working Principle 1. Cartoned products from cartooning machine goes into the feeding conveyor belt of the equipment; 2. After making the stack, products shall be stacked up until the specified number of layers; 3. The products stack is pushed forward directly by the main pushing hand, and the wrapping film is carried out, then the horizontal seal is finished; 4. Wrapped product is sent into the oven through conveyor for heat shrinking. 5. Finally, the finished product comes out. Features lt can wrap products of different sizes and its sleeve sealing is very tidy and clean. Stacking System: Driven by servo motor, stack upward.
