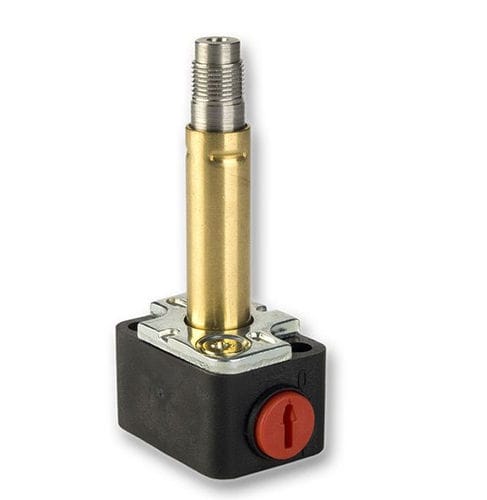

Direct-operated solenoid valve 106-050-00013/2-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3/2-way
- Function
- NC
- Medium
- air
- Body
- threaded, seat
- DN
1 mm
(0.039 in)- Temperature
Min.: -10 °C
(14 °F)Max.: 130 °C
(266 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)
Description
The nass magnet valve system is a body with an armature assembled into it eliminating the need for the customer to produce a valve seat cavity.
Overall Width - 16 mm
Electrical operating mode - AC/DC
Manual Override - Without Manual Override
Orifice Size Exhaust - 1,1 mm
Surface Coating Armature Tube - Without
Sealing material in the armature - FKM
Coating of armature - Without
Sealing material to the valve body - ohne Dichtung
Medium quality according to ISO standard - 3-3-3
nominal flow 1-2 - 32 l/min
nominal flow 2-3 - 40 l/min
leakage max. - 4 ml/min
Catalogs
No catalogs are available for this product.
