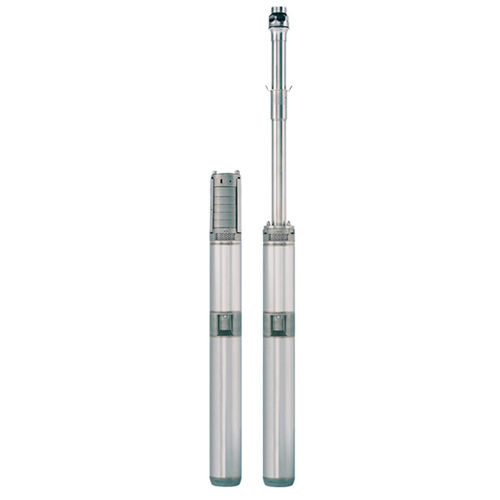

4HS MultiPower pumps (4HS MP), powered by renewable energy sources, is a new range coming from the 4HS pumps with built-in inverter.
4HS MultiPower pumps can be powered by AC or DC with a wide range of operating voltage (90 – 265 VAC / 90 – 400 VDC). This means that 4HS MP pumps can be connected to solar panels, batteries, wind turbine and a diesel generator.
A special software algorithm allows for adjusting the hydraulic performance to each source and to the available power while maximising the amount of water pumped.
The built-in electronics inside the motor avoids the use of shielded cables and output filters and it is the ideal solution for any application in remote locations without surveillance and climatically adverse.
In fact, in the traditional solutions, the solar inverter is placed above ground and, being exposed to the weather, could suffer of:
- Overheating
- Water infiltration
- Thermal shock
- Damaging by animals or people
The built-in electronics are directly cooled by the water flow; the operating temperature of the electronic components is so low as to ensure considerably longer life than a surface inverter affected by high temperatures, humidity, dust and sunlight.
4HS MultiPower pump can be installed with CM MultiPower control module or without it, thus becoming a plug&pump system.
