Digital dynamometer DIN 05 M
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Rated load
Max.: 10,000 kg
(22,046.23 lb)Min.: 3,200 kg
(7,054.79 lb)
Description

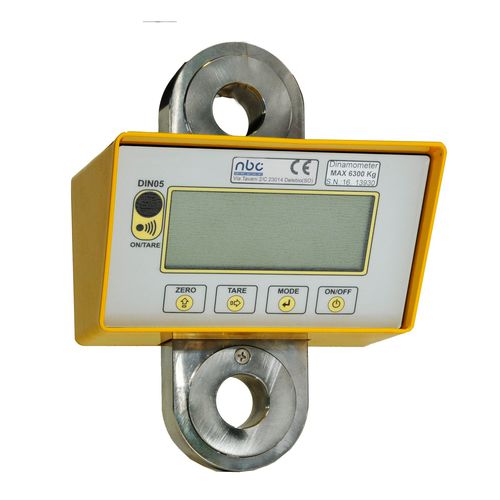

Electronic dynamometer composed by a stainless steel traction load cell and an aluminium housing where is placed an electronic with a liquid crystal display, designed for weighing suspended loads.
EXCITATION
n°3 battery Type “AA” (autonomy >180 hours)
SAFETY FACTOR
200% of full scale
PROTECTION CLASS
IP65 (EN 60529)
LOAD CELLS MATERIAL
Stainless Steel
HOUSING MATERIAL
Die-cast aluminum
