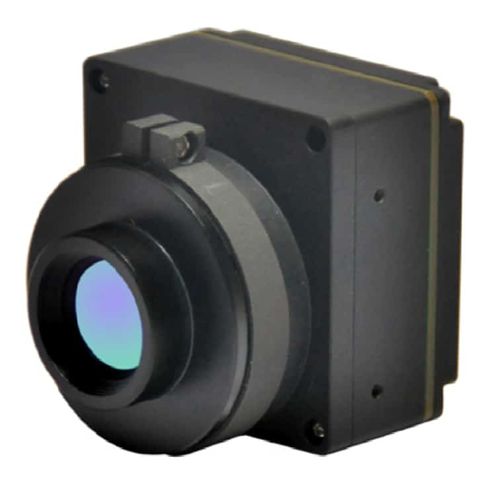

Medical camera TC688

for firefightingdigitalsurveillance

irPOD TC688 offer comprehensive features and outstanding performances to make them satisfy many thermal integrated applications. TC688 is with advanced reliable shutter, same small volume and same output to provide stable quality, wonderful thermal image video and versatile compatibility. TC688 is convenient to be fixed into an existing system with M2.0 & 1/4”-20 mounts, also they can be integrated into various applications including thermal night vision systems, driving vision enhancement, firefighting equipments, medical equipments, thermal sights, security & surveillance products, and more. • Tiny size, light weight for easy integration • High sensitivity: 17 micron pixel size, ~65mk • 50Hz frame rate for crisp thermal image video • PAL | NTSC switchable analog video output • LVDS | CMOS | BT.656 digital video options • Auto | Manual brightness | Contrast adjustment • Video output in black-and- white or colorful display • 2x, 4x, 8x digital zoom to see objects’ details • Advanced image enhancement are embedded • Friendly interfacing for camera control and configuration • IP67 sealed for the first front of lens • Support for movable cursor • Start-up splash screens can be loaded by customers. • Upgradable software | firmware available • Available for athermal, manual, motorized lenses and customized lenses.
