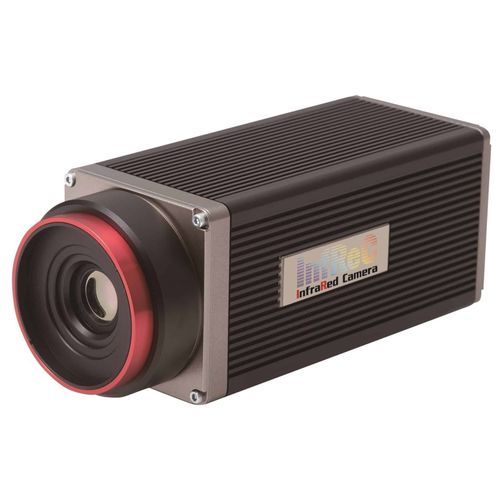

Digital camera TS600 series

industrialfor productionfor process monitoring

Robust industrial IR camera version for fixed installed applications under extreme environment conditions as process-/ production control, environment surveillance, fire warning systems, research & development. Optional housing with or without cooling or heating features, lenses with high quality coating, optional display with remote control are shown under accessories as well as irMOTION control and application software. All driver utilities are as SDK (Software Development Kit) for EtherCat- Integration, MODE-Bus, ONVIF und TP-Netzwerk Protokoll. is available. The IR-Thermal Imaging Camera Thermo Tracer TS600 provides following outstanding features: • Detector Resolution: 640 x 480 Pixels • I.F.O.V.: 0,6 mrad • Infrared camera with standard temperature measurement range from -40°C to 500°C • Optional extension temperature measurement range up to 1.500°C • Low weight, ruggedize (0.8kg) camera body (IP54). Optional there are all-weather housing and industrial protecting cabinets available • Software Development Kit (SDK) available as option • Operating as stand-alone monitoring device possible • Infrared camera TS6’series can be easily connected in a networked conditional monitoring control system
