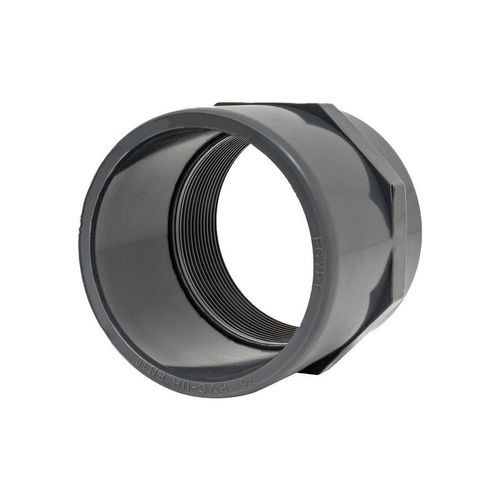

Threaded adapter SO12 series

femalefor pipesPVC-U

Short description
Female adaptor for U-PVC pressure fittings, series SO12. Intended to connect U-PVC pressure pipe to a female-threaded connection.

Product details

• Category: ADAPTOR SERIES
• Model / Series: SO12
• Material / Range: U-PVC pressure fittings
• SKU: (not specified)

Summary
Female adaptor, multiple size variants available. See datasheet for dimensions and packing.

Datasheet (table)
Code | dxG | L | L1 | Z | E | E1 | C | PN | Gr | Pack | Box
SO12N020B | 20X1/2 | 16 | 16.5 | 3 | 27 | 27 | 30 | 16 | 15 | 350 | S
SO12N025C | 25X3/4 | 19 | 19.5 | 3 | 33 | 34 | 34 | 16 | 25 | 300 | M
SO12N032D | 32X1 | 22 | 22.5 | 3 | 41 | 41 | 42 | 16 | 38 | 300 | M
SO12N040E | 40X11/4" | 26 | 27 | 3 | 50 | 50 | 55 | 16 | 61 | 180 | M
SO12N050F | 50X11/2 | 31 | 30 | 3 | 61 | 60 | 65 | 16 | 95 | 120 | M
SO12N063G | 63X2 | 38 | 36 | 3 | 76 | 75 | 75 | 16 | 143 | 75 | M
SO12N075H | 75*2 1/2" | 44 | 30 | 4 | 90 | 89 | 90 | 16 | 215 | 45 | M
SO12N090I | 90x3" | 51 | 50 | 5 | 108 | 106 | 110 | 16 | 340 | 54 | L
SO12N110L | 110x4" | 61 | 63 | 6 | 131 | 129 | 129 | 16 | 505 | 30 | L

Caractéristiques / spécifications techniques

• Type: ADAPTOR SERIES (Female adaptor)
• Material: U-PVC for pressure applications
• Model / Series: SO12
• Available variant codes: SO12N020B, SO12N025C, SO12N032D, SO12N040E, SO12N050F, SO12N063G, SO12N075H, SO12N090I, SO12N110L
• Typical dimensions and packing: see datasheet table above (columns: dxG, L, L1, Z, E, E1, C, PN, Gr, Pack, Box)
