Pipe flange ST23 series

PVC-U

Short description

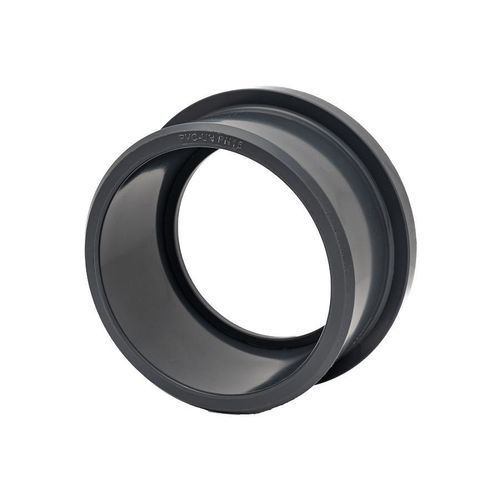

Stub flange (BS) in U-PVC for imperial plain piping systems, available in sizes 1/2″ to 4″.

Product information

• Brand: U-PVC PRESSURE FITTINGS
• Category: IMPERIAL PLAIN FITTINGS
• SKU:

Summary
Model ST23 stub flange (BS) supplied in multiple imperial sizes and codes; suitable for U-PVC pressure pipe assemblies requiring an imperial plain fitting.

Datasheet (table)
Code | d | L | Z | S | E | E1 | Class | Gr | Pack | Box
ST23N0200 | 1/2″ | 16.5 | 3 | 6 | 27 | 34 | E | 10 | 550 | S
ST23N0250 | 3/4″ | 19.5 | 3 | 6 | 33 | 41 | E | 14 | 350 | S
ST23N0320 | 1″ | 22.5 | 3 | 6 | 41 | 50 | E | 23 | 200 | S
ST23N0400 | 1″1/4 | 26.6 | 3 | 8 | 50 | 61 | E | 48 | 250 | M
ST23N0500 | 1″1/2 | 30 | 3 | 8 | 61 | 73 | E | 68 | 180 | M
ST23N0630 | 2″ | 36 | 3 | 8 | 76 | 90 | E | 128 | 90 | M
ST23N0900 | 3″ | 50.5 | 5 | 10 | 108 | 125 | E | 272 | 70 | L
ST23N1100 | 4″ | 63 | 5 | 11 | 131 | 150 | E | 361 | 45 | L

Available datasheet PDFs
Multiple size-specific PDF datasheets are provided for ST23 variants: ST23N0200, ST23N0250, ST23N0320, ST23N0400, ST23N0500, ST23N0630, ST23N0900, ST23N1100.

Characteristics / technical specifications

• Type: IMPERIAL PLAIN FITTINGS
• Brand: U-PVC PRESSURE FITTINGS
• Product name / model: ST23
• Short description: Stub Flange BS
• Available sizes / codes: ST23N0200, ST23N0250, ST23N0320, ST23N0400, ST23N0500, ST23N0630, ST23N0900, ST23N1100
• Datasheet parameters included: d, L, Z, S, E, E1, Class, Gr, Pack, Box
