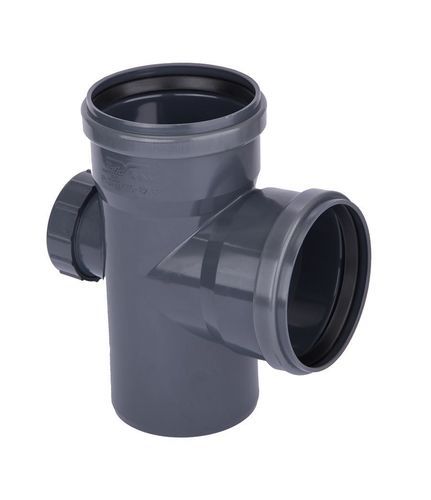

Pipe elbow BR41 series

Short description
ACCESS BRANCH 87.5° for drainage systems. BR41 is a rubber ring joint designed to create an access branch at 87.5° between drainage pipes.

Product details

• Brand: TADO
• Category: Drainage Rubber Ring Joints
• Model: BR41
• SKU:

Summary
Access branch 87.5° available in two variants for common drainage diameters; quick installation with rubber ring sealing.

Datasheet

• BR41G110H | d = 110/75 | Z1 = 41 | Z2 = 61 | T = 3.2 | W = 420 | Pack = 25 | Box = XL
• BR41G110L | d = 110/110 | Z1 = 58 | Z2 = 61 | T = 3.2 | W = 510 | Pack = 25 | Box = XL

Technical specifications

• Type: Drainage Rubber Ring Joints
• Brand: TADO
• Model: BR41
• Description: ACCESS BRANCH 87.5°
• Datasheet - BR41G110H: d = 110/75; Z1 = 41; Z2 = 61; T = 3.2; W = 420; Pack = 25; Box = XL
• Datasheet - BR41G110L: d = 110/110; Z1 = 58; Z2 = 61; T = 3.2; W = 510; Pack = 25; Box = XL
