Round cap CA370 series

PPfor pipes

Overview

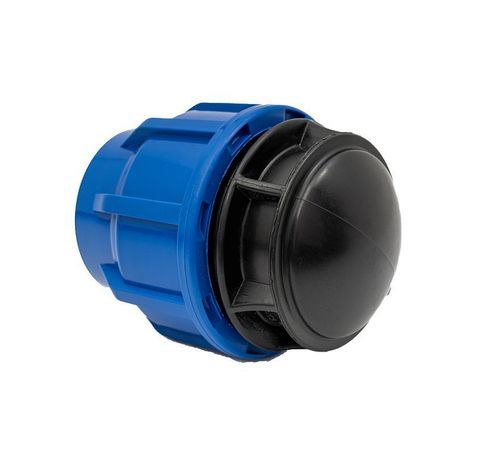

PP compression end cap designed for irrigation pipelines. Available in multiple diameters to cap PP irrigation pipes and facilitate system closing and maintenance.

Short description
End cap for PP compression fittings (irrigation)

Product details

• Brand: KP
• Category: PP compression fittings
• Model / Reference: CA370
• SKU:

Datasheet (dimensions table)
Code | d | D | d | L | I | g
CA370K0200 | 20 | 44 | 20 | 71 | 53 | 41.6
CA370K0250 | 25 | 52 | 25 | 78 | 59 | 51.2
CA370K0320 | 32 | 63 | 32 | 86 | 67 | 81.4
CA370K0400 | 40 | 76 | 40 | 105 | 82 | 174.7
CA370K0500 | 50 | 91 | 50 | 114 | 90 | 270.2
CA370K0630 | 63 | 107 | 63 | 134 | 105 | 408.4
CA370K0750 | 75 | 125 | 75 | 153 | 119 | 508.4
CA370K0900 | 90 | 150 | 90 | 165 | 151 | 779
CA370K1100 | 110 | 178 | 110 | 233 | 131 | 1990

Summary
End cap for PP irrigation systems

Technical specifications

• Model / Denomination: CA370
• Type: PP compression end cap (irrigation)
• Brand: KP
• Material: Polypropylene (PP)
• Available variants: see datasheet table above (CA370Kxxxx codes with corresponding d, D, L, I, g)
• Typical uses: pipe capping, system isolation, maintenance and pressure testing
• Compatible diameters: 20–110 mm depending on variant
