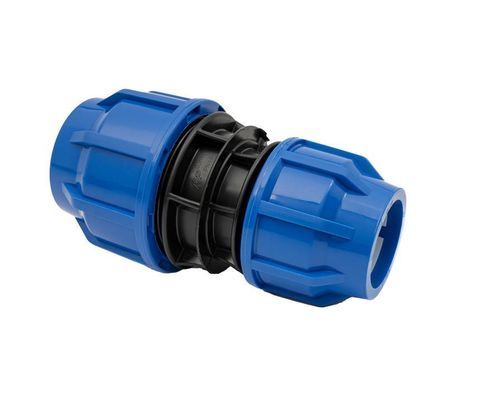

Polypropylene pipe coupling RS310 series

for PP pipes

Short description
PP compression reducing coupling RS310 for irrigation, available in multiple size pairs from 32×25 to 75×63 mm.

Product details

• Application: irrigation — reducing coupling
• Brand: KP
• Category: PP compression fittings
• Model / Commercial denomination: RS310
• SKU:

Summary
Reducing coupling designed for reliable pipe transitions in irrigation systems; available in several code-specific size combinations to adapt larger to smaller PP pipes.

Datasheet (dimensions table)
Code | d X d | D | d | D1 | d1 | L | I | I1 | Z | g
RS310K032C | 32 x 25 | 63 | 32 | 52 | 25 | 129 | 67 | 59 | 4 | 120
RS310K040D | 40 x 32 | 76 | 40 | 63 | 32 | 153 | 82 | 67 | 9 | 240
RS310K050D | 50 x 32 | 91 | 50 | 63 | 32 | 168 | 89 | 67 | 9 | 350
RS310K050E | 50 x 40 | 91 | 50 | 76 | 40 | 175 | 89 | 82 | 6 | 380
RS310K063E | 63 X 40 | 107 | 63 | 76 | 40 | 194 | 105 | 82 | 5 | 499
RS310K063F | 63 x 50 | 107 | 63 | 91 | 50 | 199 | 105 | 90 | 2 | 600
RS310K075G | 75 x 63 | 125 | 75 | 107 | 63 | 219 | 119 | 105 | 3 | 800

Technical specifications

• Type: PP compression fittings
• Brand: KP
• Model / Commercial denomination: RS310
• Short description: reducing coupling for irrigation
• Category: PP compression fittings
• Available codes and sizes: RS310K032C (32 x 25), RS310K040D (40 x 32), RS310K050D (50 x 32), RS310K050E (50 x 40), RS310K063E (63 x 40), RS310K063F (63 x 50), RS310K075G (75 x 63)
• Dimensions provided per code: D, d, D1, d1, L, I, I1, Z, g (see datasheet table)
