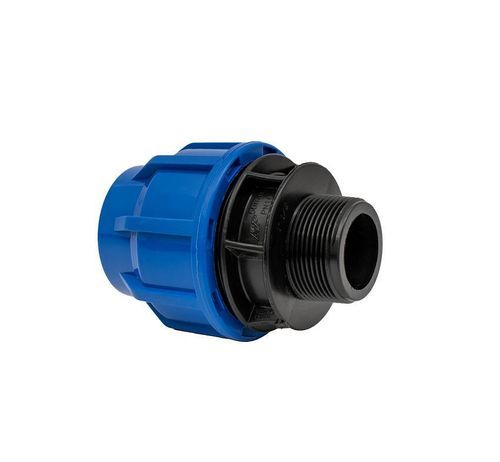

Threaded adapter AD312 series

malefor pipespolypropylene

Description
Male compression adapter for polypropylene (PP) irrigation pipe systems. Connects PP pipes to threaded female fittings; available in multiple sizes and thread variants (20 x 1/2″ to 110 x 4″).

Product information

• Brand: KP
• Category: PP compression fittings
• Designation: AD312
• Application: Irrigation systems
• SKU:

Summary
Male adapter designed for irrigation applications. Compression connection for secure join between PP pipes and female threaded components.

Datasheet
Code | d x G | D | d | L | l | H | Z | g
AD312K020B | 20 x 1/2″ | 44 | 20 | 88 | 53 | 18 | 35 | 38
AD312K020C | 20 x 3/4″ | 44 | 20 | 88 | 53 | 18 | 35 | 40
AD312K025B | 25 x 1/2″ | 52 | 25 | 94 | 59 | 18 | 35 | 50
AD312K025C | 25 x 3/4″ | 52 | 25 | 95 | 59 | 18 | 36 | 52
AD312K025D | 25 x 1″ | 52 | 25 | 97 | 59 | 20 | 38 | 52
AD312K032C | 32 x 3/4″ | 63 | 32 | 102 | 67 | 18 | 35 | 78
AD312K032D | 32 x 1″ | 63 | 32 | 106 | 67 | 20 | 39 | 80
AD312K032E | 32 x 1 1/4″ | 63 | 32 | 106 | 67 | 22 | 41 | 90
AD312K040D | 40 x 1″ | 76 | 40 | 127 | 82 | 22 | 45 | 140
AD312K040E | 40 x 1 1/4″ | 76 | 40 | 129 | 82 | 24 | 47 | 150
AD312K040F | 40 x 1 1/2″ | 76 | 40 | 129 | 82 | 24 | 47 | 160
AD312K050F | 50 x 1 1/2″ | 91 | 50 | 140 | 90 | 24 | 50 | 236
AD312K050G | 50 x 2″ | 91 | 50 | 141 | 90 | 26 | 51 | 250
AD312K063F | 63 x 1 1/2″ | 107 | 63 | 154 | 105 | 24 | 49 | 380
AD312K063G | 63 x 2″ | 107 | 63 | 160 | 105 | 26 | 55 | 390
AD312K075G | 75 x 2″ | 125 | 75 | 179 | 119 | 26 | 60 | 730
AD312K075H | 75 x 2 1/2″ | 125 | 75 | 178 | 119 | 26 | 59 | 750
AD312K090I | 90 x 3″ | 150 | 90 | 213 | 151 | 28 | 62 | 774
AD312K110L | 110 x 4″ | 176 | 110 | 244 | 171 | 35 | 73 | 1400

Technical characteristics

• Type: PP compression fittings
• Brand: KP
• Designation: AD312
• Short description: Male adapter (Irrigation)
• Datasheet: dimensions and codes listed above (Code / d x G / D / d / L / l / H / Z / g)
