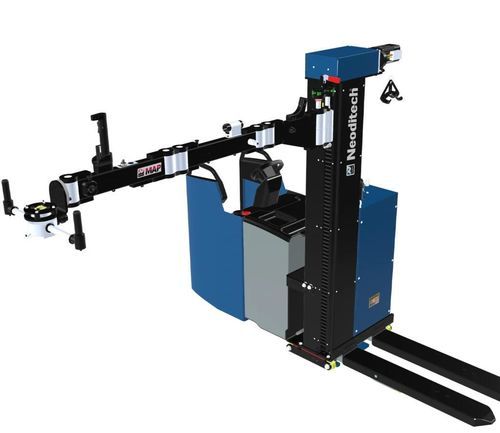

Electric manipulator arm

with gripping toolfor workstationsfor materials handling

Overview
NEODITECH’s Picking Cobot is an autonomous articulated manipulator mounted on an electric pallet truck, designed to assist operators in industrial picking and logistics tasks. It enables frontal insertion into racks, deep picks under beams, ground-level and elevated handling while reducing physical effort and improving operational flexibility.

Key benefits

• Ergonomics and MSD prevention: the system compensates load weight to significantly reduce operator effort and fatigue.
• Mobility and autonomy: mounted on a pallet truck with a detachable battery pack for extended operation and easy movement between workstations.
• Adaptability: compatible with most electric pallet truck models; quick relocation across aisles and work cells.
• Precision and smooth handling: kinematics designed to maintain maneuverability and smooth movement even with medium-to-heavy loads.

Capabilities
Available in structural variants sized for medium loads (~50 kg) and reinforced versions up to 100 kg depending on configuration. Typical use cases include handling panels, windshields and other rack-stored or shelf-stored industrial items while preserving smoothness and control.

Power & autonomy
The manipulator uses a detachable battery pack. Autonomy varies with application and configuration (time-based estimates ~6–24 hours) and can also be expressed in duty cycles (example: ~1,000 manipulation cycles as defined by two vertical strokes + 15 s grip). Fast-charge and standard charging strategies are supported to fit operational constraints.

Mounting & ergonomics
Mounted on an electric pallet truck with an intuitive frontal grip and an offset safe-grip solution for complex or irregular loads. Vertical stroke reaches approximately 1.40 m to access different heights; compact design for narrow aisles.

Interchangeable end-effectors (gripping tools)

• Suction cup lifting beams: for flat, rigid, non-porous surfaces.
• Compressible-foam vacuum boxes: for irregular or deformable surfaces.
• Mechanical clamps and hooks: for specific or irregular formats (coils, bags, hooked loads).

Customization & integration
NEODITECH offers tailor-made tooling and integration support from its design office to adapt grippers and interfaces to specific product geometries and process constraints.

Manufacturing & quality
Designed and manufactured in France as a solution for industrial picking and logistics optimization.

Applications
Intended for logistics, e‑commerce picking, distribution of building materials, appliance and furniture handling, and other industrial material handling contexts requiring mobility and operator safety.

Technical specifications

• Product name / series: Picking Cobot
• Type: Autonomous articulated manipulator mounted on electric pallet truck
• Maximum handling capacity: up to 100 kg (depending on configuration)
• Typical handling range: around 50 kg (medium loads)
• Vertical stroke: approximately 1.40 m
• Battery: detachable pack; autonomy variable (time-based ~6–24 hours or ~1,000 cycles depending on definition)
• Battery recharge: supports fast-charge and standard charge strategies (operational timings depend on configuration)
• End-effectors: suction cup lifting beams, foam vacuum boxes, clamps, hooks (interchangeable)
• Mobility: compatible with most electric pallet truck models; easy movement between workstations
• Design / manufacture: designed and manufactured in France
• Primary fields: logistics, picking, handling of rack- and shelf-stored items
