Free-standing jib crane

ergonomicelectricelectric

Overview

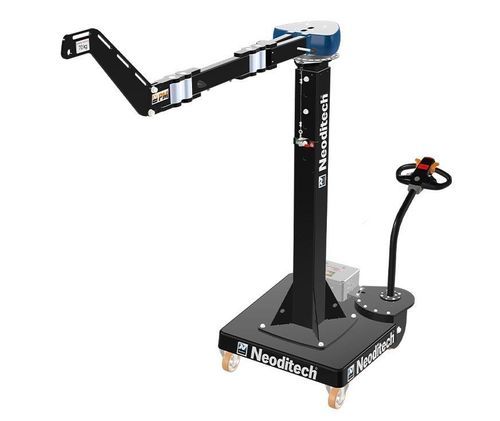

The NEODITECH mobile jib crane (PM series) is a mobile, ergonomic lifting solution for industrial handling tasks. With a 2 m reach and models for 70 kg and 100 kg capacities, it streamlines pick-and-place operations while reducing operator effort and the risk of musculoskeletal disorders.

Key benefits

• Ergonomics: compensates load weight to minimise operator strain and lower MSD risks.
• Mobility: quick relocation between workstations via a mobile base (feet) or an autonomous electric wheel option.
• Versatility: compatible with multiple interchangeable gripping tools for varied applications.
• Smooth handling: fluid movements and high manoeuvrability for fast, precise positioning.
• Autonomy: optional autonomous electric wheel and battery-fed hoist for operation without external power.
• Safety: reinforced design and stability features for secure handling under load.

Interchangeable gripping tools (compatible equipment)

• Suction-beam lifters — for panels, glazing, flat metal sheets.
• Power magnets — for steel parts and plates.
• Hooks and mechanical clamps — for sacks, cartons, drums.
• Custom grippers — tailored solutions available through the design office for specific geometries or fragile parts.

Applications
Suitable for production, assembly, logistics, inspection and maintenance tasks. Typical handled items include bags, panels, metal parts, cartons, drums and windows where mobility and operator safety are priorities.

Mounting & mobility options

• Mobile base on feet for occasional repositioning (compatible with pallet truck).
• Autonomous electric wheel for frequent moves and high freedom of movement (no external supply required for the wheel option).
• Fast, flexible installation without ground fixation.

Performance indicators shown on page

• Action radius: 2 m.
• Capacities indicated: 70 kg (medium loads) and 100 kg (heavier loads).

3D & video resources
A 3D model and product videos are available for demonstration. Example 3D file referenced on the page: Potence_de_levage_mobile_PM1405_3D.glb.

Technical specifications

• Series: PM series.
• Available capacities: 70 kg and 100 kg.
• Action radius: 2 m.
• Standard height: 2.3 m (extendable up to 3.8 m via integrated mast extension).
• Mobile bases: feet-mounted mobile base (relocatable via pallet truck) or autonomous electric-wheel base.
• Compatible gripping tools: suction beams, magnets, clamps, hooks and custom grippers.
• Energy options: autonomous battery 24V hoist or mains-powered hoist.
• Safety & compliance: designed to meet applicable machine safety requirements; stability and anti-crush devices integrated.
