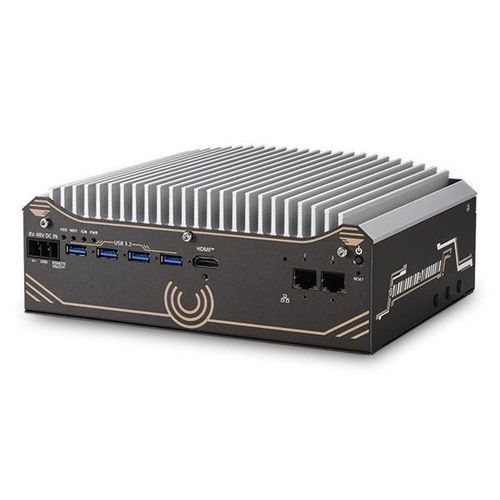

Expansion computer Nuvo-11501

EDGEAIAI Inference

Introduction
The Nuvo-11501 is a cost-effective, compact, fanless embedded AI computer powered by an Intel® Core™ Ultra 200S series processor. It is an ideal solution for machine vision or factory automation applications that demand cutting-edge CPU performance, cost efficiency, minimal I/O, and flexible storage options. Powered by the latest Core™ Ultra 200S processors, the Nuvo-11501 delivers nearly 120% of the performance while consuming only 80% of the power compared to the previous generation, thanks to TSMC's advanced 3nm process technology. In addition to its superior CPU performance, the Core™ Ultra 200S series also features an integrated Neural Processing Unit (NPU), providing enhanced AI inference capabilities alongside rule-based algorithms to meet the demands of modern machine vision applications. The Nuvo-11501 offers essential I/O functions for industrial application needs, including dual 2.5GbE ports, dual display ports, and four USB 3.2 ports. Additionally, it features a Gen4 x4 M.2 NVMe slot for high-speed OS read/write operations, along with an internal 2.5"/3.5" SSD/HDD bay for high-capacity storage—ideal for data logging or video recording. For internal expansion, it provides two mPCIe slots and one M.2 E-Key slot for adding COM ports, Wi-Fi, or 5G/ 4G LTE connectivity. Combining a proven thermal design with essential I/O functionality, the Nuvo-11501 delivers a rugged, compact, and budget-friendly computing solution tailored for a wide range of industrial applications.

• Supports Intel® Core™ Ultra 200S series 35W/ 65W LGA1851 CPU
• Compact 212 x 165 x 80 mm footprint
• Rugged, -10°C to 60°C fanless operation
• Up to 64GB DDR5 6400 memory
• 8V to 48V wide-range DC input
• 2x 2.5GbE and 4x USB3.2 Gen1 with screw-lock
• Supports 1x M.2 2280 Gen4x4 NVMe and 1x 3.5"/2.5" SATA HDD/SSD storage
• HDMI + DP dual display outputs

Specification
System Core
Processor: Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP - Intel® Core™ Ultra 9 285/285T - Intel® Core™ Ultra 7 265/265T - Intel® Core™ Ultra 5 245/245T
Chipset: Intel® H810 platform controller hub
Graphics: Integrated Intel Xe LPG Graphics
AI Engine: Integrated neural processing unit
Memory: Up to 64GB DDR5 6400 memory via one SODIMM slot
TPM: fTPM 2.0 (standard) / dTPM 2.0 (optional)
I/O Interface
Ethernet: 2x 2.5GBASE-T Ethernet ports with screw-lock by Intel® I226-V GbE controllers. Port 2 supports Wake-on-LAN (WOL)
USB: 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock, 2x USB 2.0 ports
Video Port (Integrated Graphics): 1x HDMI, supporting 3840 x 2160 resolution; 1x DisplayPort, supporting 3840 x 2160 resolution (The DisplayPort does not support DP++. Use an active DP-to-HDMI adapter for HDMI output.)
Serial Port: 1x software-programmable RS-232/422/485 ports (COM1); 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2)
Internal Expansion Bus
Mini PCI Express: 2x full-size mini PCI Express sockets with internal SIM sockets
M.2 E: 1x M.2 2230 E key socket for WiFi module
Storage Interface
SATA HDD: 1x Internal SATA port for 1x 3.5" HDD or 1x 2.5" HDD/ SSD
M.2 M: 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD
Power Supply
DC Input: 1x 3-pin pluggable terminal block for 8V to 48V DC input with optional ignition power control [1]
Mechanical
Dimension: 212 mm (W) x 165 mm (D) x 80 mm (H)
Weight: 2.5 kg (excluding wall mount kit)
Mounting: Wall-mount (optional) or DIN-rail mount (optional)
Environmental
Operating Temperature: With 35W CPU -10°C to 60°C [2]; With 65W CPU (installation of the optional fan kit is recommended) -10°C to 60°C [2]/[3]
Storage Temperature: -40°C ~ 85°C
Humidity: 10%~90%, non-condensing
Vibration: MIL-STD-810H, Method 514.8, Category 4
Shock: MIL-STD-810H, Method 516.8, Procedure I
EMC: CE/FCC Class A, according to EN 55032 & EN 55035
[1] The maximum input current for each pin is 20A
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[3] For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.

Ordering Information
Nuvo-11501: Intel® Core™ Ultra 200S compact fanless computer featuring 2x 2.5GbE, 4x USB 3.2

Optional Accessories
DINRAIL-31: DIN-rail mounting assembly for Nuvo-11501 and Nuvo-9501 series
Wmkit-H-Nuvo9501: Wall mount assembly for Nuvo-11501 and Nuvo-9501 series
AccsyBx-FAN-Nuvo11531_11501: Fan kit with 92mm x 92mm fan for Nuvo-11588/ Nuvo-11531/ Nuvo-11501 series
PA-160W-OW 160W: AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.
PA-280W-ET2: 280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C. (recommended for 65W CPU)

Characteristics / Technical Specifications

• Supports Intel® Core™ Ultra 200S series 35W/ 65W LGA1851 CPU
• Compact 212 x 165 x 80 mm footprint
• Rugged, -10°C to 60°C fanless operation
• Up to 64GB DDR5 6400 memory
• 8V to 48V wide-range DC input
• 2x 2.5GbE and 4x USB3.2 Gen1 with screw-lock
• Supports 1x M.2 2280 Gen4x4 NVMe and 1x 3.5"/2.5" SATA HDD/SSD storage
• HDMI + DP dual display outputs
• Integrated Intel Xe LPG Graphics
• Integrated neural processing unit (NPU)
• 2x full-size mini PCI Express sockets with internal SIM sockets
• 1x M.2 2230 E key socket for WiFi module
• 1x Internal SATA port for 1x 3.5" HDD or 1x 2.5" HDD/ SSD
• 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD
• 1x 3-pin pluggable terminal block for 8V to 48V DC input with optional ignition power control
• Wall-mount (optional) or DIN-rail mount (optional)
• Operating Temperature: -10°C to 60°C (with 35W or 65W CPU, fan kit recommended for 65W above 50°C)
• Storage Temperature: -40°C ~ 85°C
• Humidity: 10%~90%, non-condensing
• Vibration: MIL-STD-810H, Method 514.8, Category 4
• Shock: MIL-STD-810H, Method 516.8, Procedure I
• EMC: CE/FCC Class A, according to EN 55032 & EN 55035
