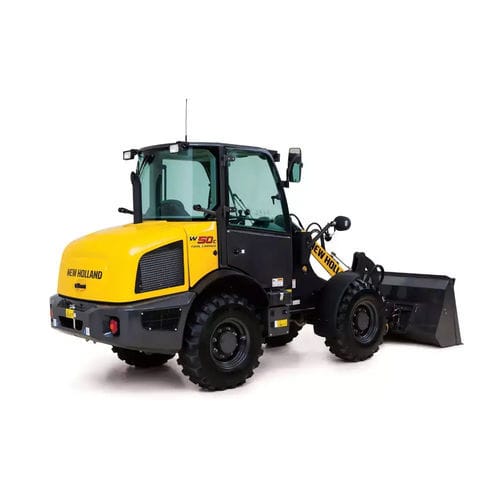

Wheeled loader W50C

articulatedtelescopicstandard

New Holland C Series compact wheel loaders are the right tool for the tough jobs you do every day. Even though compact is in the name, the W50C Tool Carrier (TC) loader delivers big power, high performance, and outstanding stability. Dependable engine and hydraulic power and an array of attachments give you all the tools to efficiently scrape, grade, and haul to the finish line. These machines are ready to work when you are. LEVELING IS DONE FOR YOU On model W50C TC, New Holland parallel linkage provides a precise and parallel lift path that eliminates manual correction, allowing the operator to focus on load placement instead of leveling. The result: faster job completion, especially when using a forklift. Model W50C TC provides a maximum of 9,4104 lbf (4104 kgF) in breakout force and yields 5 in (126 mm) of digging depth. Plus, lofty lifting capacities of 5,542 lb (2514 kg) at full height, 6,140 lbs (2785 kg) at maximum reach, and 6,614 lbs (3000 kg) on ground. TAKE ON MORE JOBS WITH CONFIDENCE Exceptional maneuverability and a tighter turning radius are essential on equipment operating on small jobsites and in constricted spaces. With this in mind, the W50C TC was designed to compactly conquer due to its reduced machine length of 204 in (5219 mm), machine width of 69 in (1740 mm) and operating height measuring up to 154 in (1400 mm). A lower center of gravity and the 82 in (2075 mm) wheelbase increase stability on New Holland compact wheel loaders so you can lift and move larger loads, travel smoothly and quickly, and operate with more confidence.
