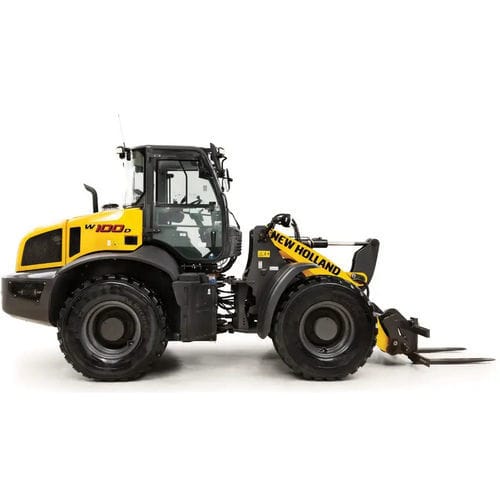

Wheeled loader W100D

compact

New Holland C Series compact wheel loaders are the right tool for the tough jobs you do every day. Even though compact is in the name, the W100D loader delivers big power, high performance, and outstanding stability. Dependable engine and hydraulic power and an array of attachments give you all the tools to efficiently scrape, grade, and haul to the finish line. These machines are ready to work when you are. BREAKOUT TOUGH PILES New Holland's Z-Bar linkage is a rugged, simple design ideal for high-production load-and-carry applications, like moving and setting drainage pipe or stacking landscape timbers. Model W100D provides a maximum of 15,806 lbf (7170 kgF) in breakout force and yields 3.4 in (86 mm) of digging depth. Plus, lofty lifting capacities of 14,826 lb (6725 kg) at full height, 14,334 lbs (6502 kg) at maximum reach, and 15,333 lbs (6955 kg) on ground. TAKE ON MORE JOBS WITH CONFIDENCE Exceptional maneuverability and a tighter turning radius are essential on equipment operating on small jobsites and in constricted spaces. With this in mind, the W100D was designed to compactly conquer due to its reduced machine length of 251.6 in (6390 mm), machine width of 70.9 in (1800 mm) and operating height measuring up to 194.3 in (4934 mm). A lower center of gravity and the 102.4 (2600 mm) wheelbase increase stability on New Holland compact wheel loaders so you can lift and move larger loads, travel smoothly and quickly, and operate with more confidence.
