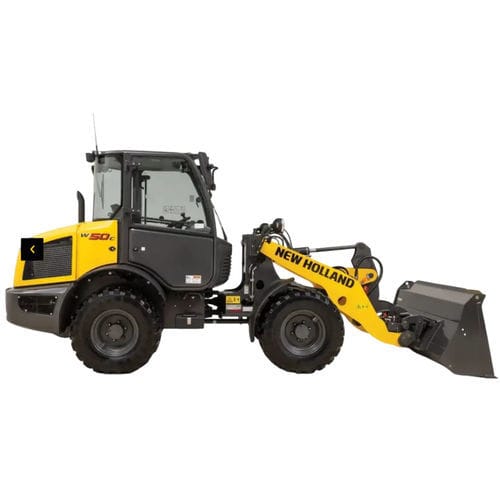

Wheeled loader W50C ZB

articulatedcompactfor construction

New Holland C Series compact wheel loaders are the right tool for the tough jobs you do every day. Even though compact is in the name, the W50C Z-Bar (ZB) loader delivers big power, high performance, and outstanding stability. Dependable engine and hydraulic power and an array of attachments give you all the tools to efficiently scrape, grade, and haul to the finish line. These machines are ready to work when you are. BREAKOUT TOUGH PILES New Holland's Z-Bar linkage is a rugged, simple design ideal for high-production load-and-carry applications, like moving and setting drainage pipe or stacking landscape timbers. Model W50C ZB provides a maximum of 13,356 lbf (6058 kgF) in breakout force and yields a dump height of 91.3 in (2320 mm). Plus, lofty lifting capacities of 7,227 lb (3278 kg) at full height, 9,200 lbs (4173 kg) at maximum reach, and 11,669 lbs (5293 kg) on ground. TAKE ON MORE JOBS WITH CONFIDENCE Exceptional maneuverability and a tighter turning radius are essential on equipment operating on small jobsites and in constricted spaces. With this in mind, the W50C ZB was designed to compactly conquer due to its reduced machine length of 206 in (5283 mm), machine width of 69 in (1740 mm) and operating height measuring up to 154 in (1400 mm). A lower center of gravity and the 82 in (2075 mm) wheelbase increase stability on New Holland compact wheel loaders so you can lift and move larger loads, travel smoothly and quickly, and operate with more confidence.
