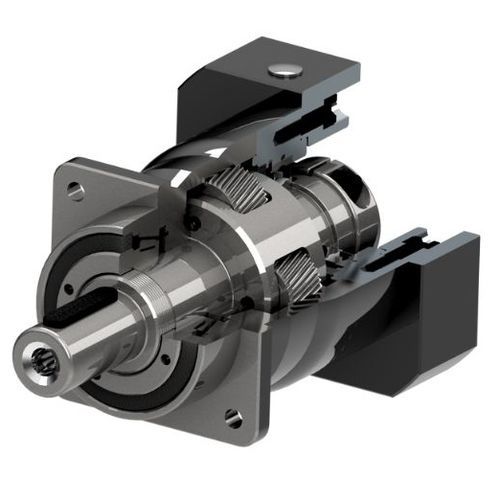

Helical gear reducer AF100

coaxialsolid-shaft20 - 50 Nm

Over all: AF Series high-precision planetary gearbox, featuring an integrated nut design in the output planetary frame for zero axial clearance. The robust structure, incorporating heavy-duty tapered roller bearings, ensures exceptional torsional rigidity and superior radial and axial load-bearing capabilities. Crafted with an integral gear ring design and true hardened helical gears from premium 20CrMnTi alloy steel, the gearbox boasts heightened strength, rigidity, and wear resistance. Utilizing 3D simulation design, it minimizes gear engagement noise, extending the operational lifespan. With a focus on applications demanding frequent start-stop operations and variable loads, the AF Series excels in high-performance scenarios. Features: Frame size from 60mm to 180mm Modularized designed for any servo and stepper motors Backlash as low as to 3 arcmin Standard Torque Capacity up to 1560N.m Standard Ratio Availability from 3:1 up to 320:1 Tapered roller bearings can take Axial load up to 27000N Applications CNC / CNC Router Application Industrial Automation Application Medical Industry Application Packing Industry Application Entertainment Equipment Application Food Industry Intelligent Transportation New Energy Pharmaceutical Industry Textile Industry
