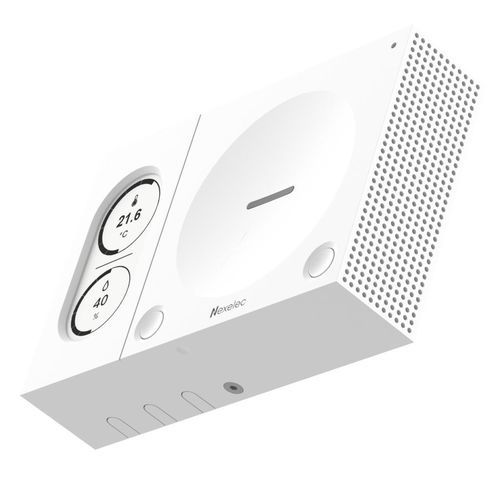

NDIR CO2 sensor RISE+

LoRaWANwith temperature measurementwith humidity measurement

Overview
3-in-1 room sensor measuring CO2, temperature and humidity with an E‑ink display for direct local reading. Connected device with LoRaWAN multi-band radio and secure cloud remote reading. Designed for professional indoor air quality monitoring and large-scale deployments.

Key features

• E‑ink display: very low power consumption, high readability in bright environments; fully configurable remotely or via NFC.
• Connected LoRaWAN: multi-band transceiver (configurable frequencies: EU868, US915, AU923, etc.); configuration via NFC and Nexelec TOUCH app.
• CO2 monitoring: NDIR CO2 sensor with measurement every 5 minutes and weekly automatic recalibration (manual calibration possible).
• Visual indicator: tri‑colour LED (Green/Orange/Red) visible from over 10 m; thresholds configurable locally (NFC) or remotely (LoRaWAN).
• Audio alert: configurable audible signal to notify occupants when air quality deteriorates.
• Local storage & redundancy: built‑in micro SD card for historical storage (up to 10 years); grouped datalog mode and repeated sends to minimize data loss.
• Power and autonomy: 3 battery slots for replaceable lithium cells; high‑efficiency architecture for extended autonomy; 3 batteries included.
• Easy installation: 3M adhesive for screwless mounting, wall‑mount or free‑standing; lockable mounting base with anti‑tear detection.
• Security & compliance: end‑to‑end protection with AES128 double encryption; calibration certificate from a COFRAC‑accredited metrology laboratory; CE/UKCA/FCC where applicable.

Measurement & performance
CO2 measured by NDIR for stable, drift‑free readings. Measurement cadence: every 5 minutes. Resolution and accuracy meet professional monitoring requirements; weekly automatic recalibration maintained by the device.

Usability

• Front button for immediate ambient readout and sharing.
• QR’LOOK label for occupants: quick access to operation and maintenance information.
• Over 25 configurable parameters via NFC/Nexelec TOUCH (measurement/transmission frequency, LED/sound indicators, radio settings, etc.).

Contents of the set

• 1 sensor RISE+
• 3 batteries included
• 1 micro SD memory card
• 1 mounting base
• 2 nylon screws and plugs
• 1 3M® adhesive fastener

Connectivity & data
LoRaWAN multi‑band connectivity with configurable frequency selection via NFC and Nexelec TOUCH. Data export and exchange supported (API, webhooks, .csv/.pdf export). Real‑time alerts and threshold‑triggered notifications available.

Regulatory & certification
Direct‑reading CO2 sensor compliant with French and international measurement standards. Calibration certificate from COFRAC‑accredited laboratory. Certifications: CE, UKCA, FCC (as applicable). Warranty: 2 years.

Technical specifications

• Carbon Dioxide (CO2): Resolution 1 ppm; Accuracy ±(50 ppm + 3% of value); Range 0–5,000 ppm
• Temperature: Resolution 0.1 °C; Accuracy ±0.2 °C; Range -30 °C to +70 °C
• Humidity: Resolution 0.5% RH; Accuracy ±2% RH; Range 0–100% RH
• Operating conditions: Indoor; typical use 0 °C to +50 °C; humidity 0% to 99% RH (non‑condensing)
• Mounting: Wall‑mounted or free‑standing; lockable mounting base available
• Dimensions: 130 x 87 x 30 mm
• Power: 3 battery slots (replaceable lithium batteries); 3 batteries included
• Data transmission: Periodic, on change, or grouped datalog with transmission redundancy
• Storage: Built‑in micro SD card (up to 10 years of measurements)
• Indicator: LED (Green/Orange/Red) visible from >10 m; configurable thresholds
• Calibration: Weekly automatic recalibration; calibration certificate from COFRAC‑accredited laboratory
• Reference example: X220LR (LoRaWAN)
