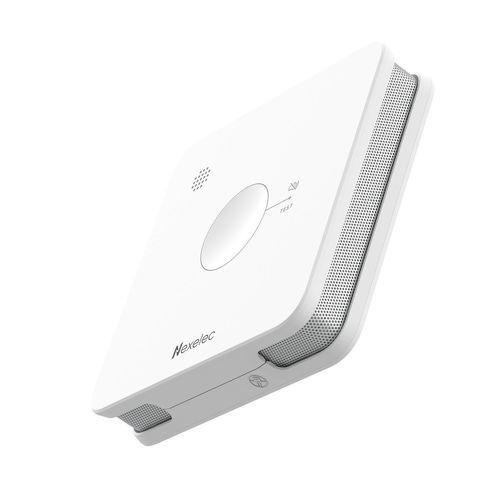

Optical smoke detector KARE+

photoelectricwirelessmulti-sensor

Overview
The KARE+ is a connected 3-in-1 room sensor designed to complement a certified but non-connected smoke detector. It combines photoelectric smoke detection with temperature and humidity monitoring in a single device. The unit is engineered for a designed operational lifetime of 10 years and is available with multiple radio protocol options. It is intended for landlords, property owners and building maintenance professionals.

Main functions

• Smoke detection: photoelectric (optical/Tyndall effect) sensor for early detection of smoky conditions.
• Temperature monitoring: high-resolution measurement (0.1°C) for ambient condition tracking.
• Humidity monitoring: relative humidity tracking to support indoor air quality management.
• Connected features: remote maintenance alerts (faults, low battery, critical parameters), remote monitoring options, integration with a digital logbook (QR code + app) and NAVIXIS platform; API interface and connectors for integration with facility management software.
• User controls: large touch-sensitive front button for test/silence functions, discreet standby LED and powerful visible alarm light for alarm state.
• Acoustic alarm: 85 dB at 3 m.
• Installation & mounting: BASE+ compact mounting base (3 cm diameter), approved 3M adhesive fastener option, universal mounting base for easy replacement, anti-tear detection and lockable mounting base options to reduce unauthorized removal.

Operational notes
The KARE+ reinforces a non-connected certified smoke detector but does not replace an approved smoke detector. For accurate temperature and humidity measurements, wall mounting is recommended at 30–60 cm below the ceiling. The device can be configured not to transmit fire alarms by default and can be integrated with approved remote monitoring services or adjusted to transmit alarms as required.

Set contents

• 1 sensor
• 1 CR123 replaceable battery
• 1 BASE+ mounting base
• 2 nylon screws and plugs
• 1 user manual

Notes & limitations

• Battery: designed for an estimated autonomy of ~5 years (actual life may vary with use and environment).
• Warranty: 2 years.
• The product is not a smoke detector and is not a substitute for a certified smoke detector; consult applicable local regulations.

Technical specifications

• Smoke: Technology – photoelectric (optical detection using light / Tyndall effect).
• Temperature: Resolution 0.1°C; Accuracy ±0.2°C; Measurement range −30°C to +70°C.
• Humidity: Resolution 0.5% r.H.; Accuracy ±2% r.H.; Measuring range 0–100% r.H.
• Audible alarm: 85 dB at 3 m.
• Power supply: 1 × CR123 lithium battery (replaceable); designed battery autonomy ~5 years*.
• Designed operational lifetime: 10 years.
• Operating conditions: Indoor use; Temperature −10°C to +50°C; Humidity 0% to 99% RH (non‑condensing).
• Mounting type: Wall (approved mounting 30–60 cm below ceiling).
• Connectivity: Available radio protocol options (example: LoRaWAN). Example reference: X862LS — 5 years battery — LoRaWAN — 915 MHz.
• Set contents: 1 sensor; 1 CR123 battery; 1 BASE+ mounting base; 2 nylon screws and plugs; 1 user manual.
• Features: Remote maintenance (real-time alerts for faults/low battery), remote monitoring options, digital logbook (QR code + app) for installation and maintenance tracking, API interface and connectors, compact base (3 cm diameter), approved 3M adhesive option, universal mounting base, anti-tear detection and lockable base, silence function (10-minute standby), 8-hour beep delay for temporary suppression of fault beeps, discreet signal LED.
• Certification / Compliance: FCC marking indicated in product documentation.
• Warranty: 2 years.
