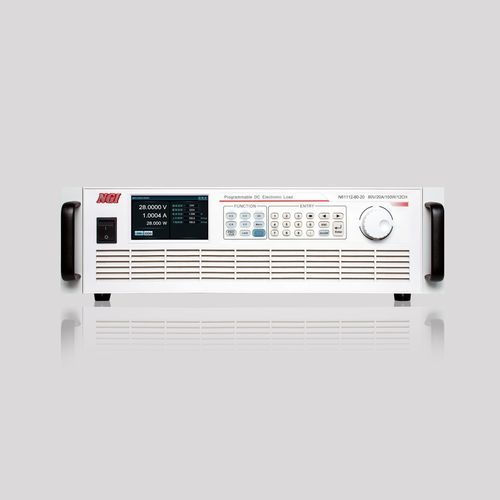

DC electronic load N61100 series

programmablemultifunctionLAN

N61100 series multi channel programmable dc electronic load N61100 series is high reliability, high integration, high cost performance and full features. It is tailored for integrated applications, featuring in high communication response speed and high stability.N61100 series is with 19-inch 3U size, up to 12 channels, and supports LAN, RS232, and RS485 communication interfaces. In most integrated applications, N61100 series can replace low-power standalone electronic loads and save much cost for users. Features Voltage range: 0~80V/0~150V/0~600V Current range: 0~120A High integration, single device up to 12 channels Dual measurement range for CC, CV, CP, CR mode 8 kinds of test mode: CC，CV，CR，CP，CV+CC，CV+CR，CR+CC，CP+CC Load effect test, dynamic sweep, time measurement, discharge test Supporting LED light simulation function OCP/OVP/OPP test mode Sequence(SEQ) test, auto test, Von/Voff, short circuit simulation Communication interfaces: LAN, RS232, RS485 Functions & Advantages Ultra-high integration, single device with up to 12 channels N61100 series DC electronic load supports up to 12 channels in a single device. Each channel is electrically isolated. It can be controlled separately, and also can be controlled up to 120 channels at the same time. The ultra-high integration in multi-channel batch test system applications reduces test cost and instrument occupation for users. Combined with up to 5ms readback speed, the test efficiency can be greatly improved. For more information，Please visit our website
