Resistance tester N8320 series

leakage currentcapacitanceleakage

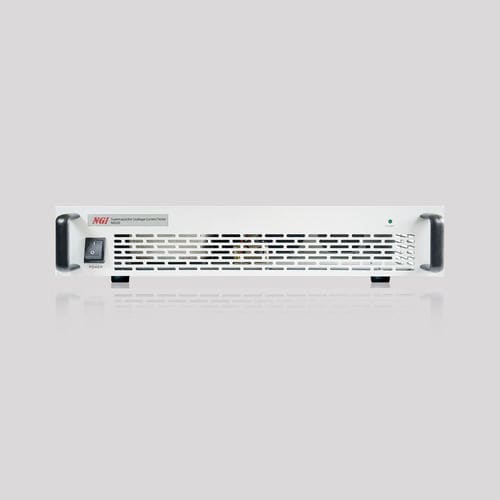

N8320 series supercapacitor current leakage tester N8320 is an analysis and diagnostic instrument specially developed by NGI for supercapacitor current leakage test. N8320 consists of three parts: test instrument, application software and test fixture. It can test the current leakage parameters of various types of supercapacitors under the set voltage. N8320 can be widely used in the R&D, production and quality inspection of supercapacitors, with the advantages of high cost performance, compact size and high accuracy. N8320 uses a standard 19-inch chassis with 2U height, which is convenient for integration into automation test platforms for R&D and production, and can also be used separately. Main Features ●Multiple ranges to be compatible with different specifications of supercapacitor ●High-accuracy current leakage measurement, resolution up to 10nA, accuracy up to 0.05% ●Voltage setting with ultra-high accuracy and stability, temperature coefficient low to 0.5ppm/℃ ●Single device with up to 24 channels, standard 19 inch 2U chassis ●Communication interfaces: LAN/RS485 ●Data export and analysis Functions & Advantages Current leakage test N8320 can provide multi-channel current leakage parameter test function. Based on high-reliability programmable voltage source and high-accuracy current leakage acquisition capability, N8320 allows uers to set parameters such as voltage and sampling interval. The test results can be stored in database and exported in the formats of Excel and JPG. For more information，Please visit our website
