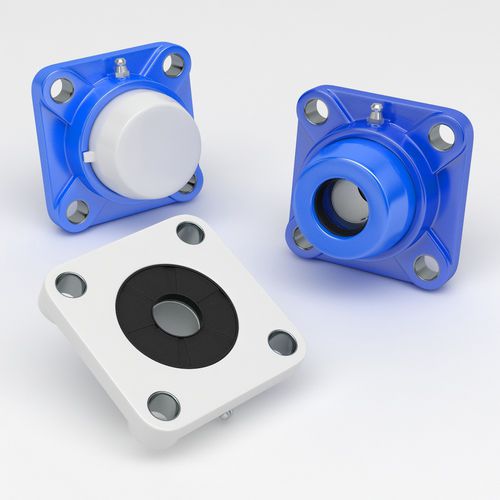

Flange bearing unit FPL series
ball bearingcast ironstainless steel

Flange bearing unit - FPL series - NHK Group ApS - ball bearing / cast iron / stainless steel

Flange bearing unit - FPL series - NHK Group ApS - ball bearing / cast iron / stainless steel - image - 2

Flange bearing unit - FPL series - NHK Group ApS - ball bearing / cast iron / stainless steel - image - 3

Flange bearing unit - FPL series - NHK Group ApS - ball bearing / cast iron / stainless steel - image - 4

Flange bearing unit - FPL series - NHK Group ApS - ball bearing / cast iron / stainless steel - image - 5

Add to favorites

Compare this product

Characteristics

Type

flange

Rolling element

ball bearing

Material

cast iron, stainless steel, chrome steel, rubber, NBR

Other characteristics

lubricated, economical

Inside diameter

Max.: 60 mm
(2.36 in)

Min.: 20 mm
(0.79 in)

Description

Precision and Reliability in Industrial Applications IP54 bearing housing in Polypropylene. (Colour in Black, White or Blue) IP54 bearing housing has adjustable pre-lubricated chrome steel or pre-lubricated stainless steel ball bearing. The bearing can be re-lubricated by means of grease-nipple or a quick coupler. IP54 bearing housing is fitted with clip-on safety cap. Rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber. Features and advantages Operating temperature between -20C and +100C. Economical operation. Long life bearing insert. Concept and design to meet all safety requirements. Interchangeable with standard cast iron flanged bearing supports. Max misalignment between shaft and housing: 3 degree. Completely sealed units. Stainless steel grease nipples AISI304 M6x1mm Stainless steel bearings AISI 440C (pre-lubricated) Ball bearing pre-lubricated with long-life grease, which is ideal in applications in humid conditions, with water, alkaline or acid solutions
