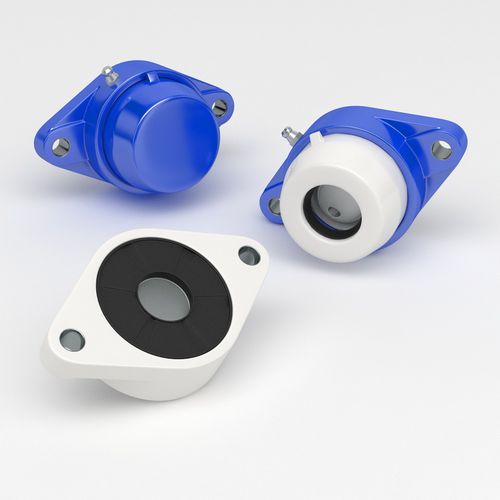

Flange bearing unit FLPL series
ovalball bearingplastic

Flange bearing unit - FLPL series - NHK Group ApS - oval / ball bearing / plastic

Flange bearing unit - FLPL series - NHK Group ApS - oval / ball bearing / plastic - image - 2

Flange bearing unit - FLPL series - NHK Group ApS - oval / ball bearing / plastic - image - 3

Flange bearing unit - FLPL series - NHK Group ApS - oval / ball bearing / plastic - image - 4

Flange bearing unit - FLPL series - NHK Group ApS - oval / ball bearing / plastic - image - 5

Add to favorites

Compare this product

Go to the NHK Group ApS website for more information

Characteristics

Type

flange, oval

Rolling element

ball bearing

Material

stainless steel, plastic

Other characteristics

lubricated, economical, dust-resistant

Applications

for the food industry, for conveyor

Inside diameter

Max.: 60 mm
(2.36 in)

Min.: 20 mm
(0.79 in)

Description

Precision and Durability for Industrial Applications IP54 bearing housing in Polypropylene. (Colour in Black, White or Blue) IP54 bearing housing has adjustable pre-lubricated chrome steel or pre-lubricated stainless steel ball bearing. The bearing can be re-lubricated by means of grease-nipple or a quick coupler. IP54 bearing housing is fitted with clip-on safety cap. Rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber. Features and advantages Operating temperature between -20C and +100C. Economical operation. Long life bearing insert. Concept and design to meet all safety requirements. Interchangeable with standard cast iron flanged bearing supports. Max misalignment between shaft and housing: 3 degree. Completely sealed units. Stainless steel grease nipples AISI304 M6x1mm Stainless steel bearings AISI 440C (pre-lubricated) Ball bearing pre-lubricated with long-life grease, which is ideal in applications in humid conditions, with water, alkaline or acid solutions.
