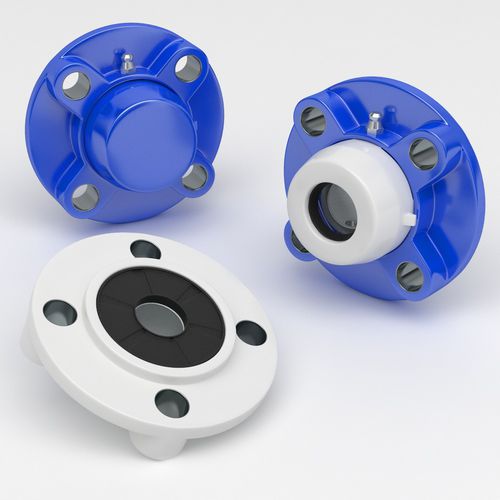

Flange bearing unit FCPL series

cartridgeball bearingcast iron

The Ultimate Bearing Solution IP54 bearing housing in Polypropylene. (Colour in Black, White or Blue) IP54 bearing housing has adjustable pre-lubricated chrome steel or pre-lubricated stainless steel ball bearing. The bearing can be re-lubricated by means of grease-nipple or a quick coupler. IP54 bearing housing is fitted with clip-on safety cap. Rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber. Features and advantages Operating temperature between -20C and +100C. Economical operation. Long life bearing insert. Concept and design to meet all safety requirements. Interchangeable with standard cast iron flanged bearing supports. Max misalignment between shaft and housing: 3 degree. Completely sealed units. Stainless steel grease nipples AISI304 M6x1mm Stainless steel bearings AISI 440C (pre-lubricated) Ball bearing pre-lubricated with long-life grease, which is ideal in applications in humid conditions, with water, alkaline or acid solutions. Cartridge 4 Bolt Flange Unit FCPL What is a Cartridge 4 Bolt Flange Unit FCPL? The Cartridge 4 Bolt Flange Unit FCPL is a highly durable and reliable bearing unit designed for applications requiring superior stability and hygienic operation. This flange unit is commonly used in food processing, pharmaceutical, and packaging industries due to its robust construction and easy-to-clean design.
