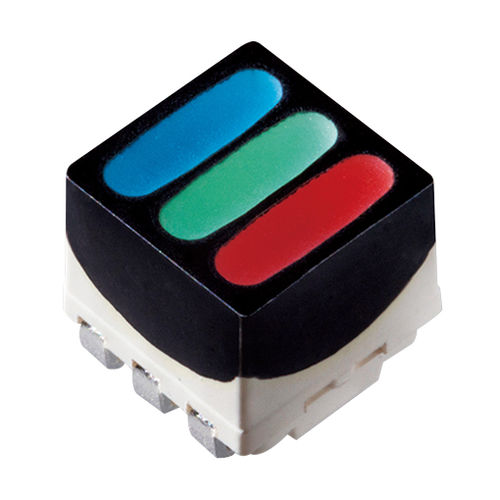

RGB LED NSSM332B

squarechipfor displays

LEDs shall be used under the conditions described in the specification sheets, independent of the application. PART NO. NSSM332BT • Pb-free Reflow Soldering Application • RoHS Compliant • RGB Sorted (RGB die lit separately.) • Absolute Maximum Ratings at TA=25°C. • Ifp conditions with puise width <10ms and duty cycle <10%. • The absolute maximum Power Dissipation per die. • The absolute maximum Power Dissipation in total per package. • Characteristics at Ta=25°C. • Luminous Intensity value as per CIE 127:2007 standard. • Chromaticity Coordinates as per CIE 1931 Chromaticity Chart.
