White LED NVSW219GF
squarecompactfor lighting

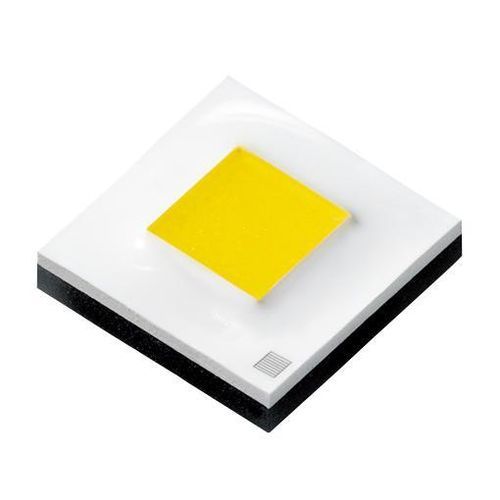

White LED - NVSW219GF - NICHIA - square / compact / for lighting
White LED - NVSW219GF - NICHIA - square / compact / for lighting
Add to favorites
Compare this product

Characteristics

Spectrum
white
Configuration
square, compact
Product applications
for lighting
Electrical power

2.07 W

Description

Overview
  • Type: LED package
  • Model: NVSW219GF
  • Package size: 3.5×3.5×0.88 mm
  • Color: White
  • Series: 19 Series


Product version
  • Previous: NVSW219C-V2
  • Current: NVSW219GF


Applications
  • Streetlight
  • High/Low bay
  • Spotlight
  • Floodlight
  • Area light
  • Portable light


Product information
  • Production status: In production (New)
  • Start of sales: October 2025
  • Packaging quantity: 1600 per reel


Typical specifications
  • Wattage: 2.07 W
  • Forward voltage: 2.97 V
  • Luminous flux (typical): 360 lm
  • Test condition: IF = 700 mA; Tj = 25°C; Color point: 5000K; Ra ≥ 70


Ranks (LUMINOUS FLUX)
  • CRI | CCT | BIN | MIN | MAX
  • R70 | 2700K | T305f15 | 305 | 380
  • R70 | 3000K | T315f15 | 315 | 390
  • R70 | 3500K | T315f15 | 315 | 390
  • R70 | 4000K | T320f16 | 320 | 400
  • R70 | 5000K | T320f16 | 320 | 400
  • R70 | 5700K | T315f15 | 315 | 390
  • R70 | 6500K | T315f15 | 315 | 390
  • R8000 | 2700K | T270f13 | 270 | 335
  • R8000 | 3000K | T270f14 | 270 | 340
  • R8000 | 3500K | T280f14 | 280 | 350
  • R8000 | 4000K | T280f14 | 280 | 350
  • R8000 | 5000K | T285f14 | 285 | 355
  • R8000 | 5700K | T285f14 | 285 | 355
  • R9050 | 2700K | T225f12 | 225 | 285
  • R9050 | 3000K | T230f12 | 230 | 290
  • R9050 | 3500K | T240f12 | 240 | 300
  • R9050 | 4000K | T250f13 | 250 | 315
  • R9050 | 5000K | T250f13 | 250 | 315
  • R9050 | 5700K | T250f13 | 250 | 315


Downloads (product-specific)
  • Product specification: NVSW219GFT-E(7593)R70 R8000 R9050.pdf


Technical characteristics / specifications
  • Model: NVSW219GF
  • Package size: 3.5×3.5×0.88 mm
  • Color: White
  • Series: 19 Series
  • Typical wattage: 2.07 W
  • Typical forward voltage: 2.97 V
  • Typical luminous flux: 360 lm (depends on bin and CCT; see ranks)
  • Test condition: IF = 700 mA; Tj = 25°C; 5000K; Ra ≥ 70
  • Production status: In production (New)
  • Start of sales: October 2025
  • Packaging quantity: 1600 per reel
