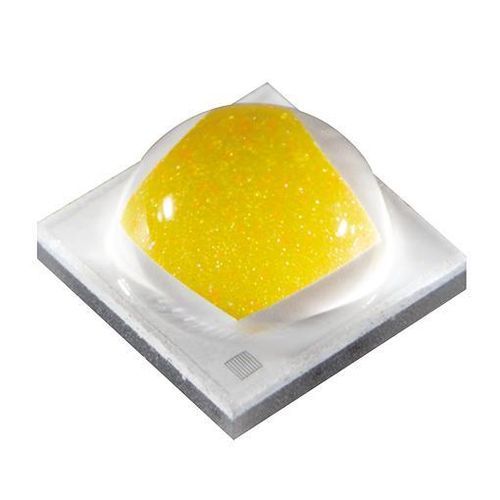

White LED NVSW119F-V1

squareSMDfor lighting

Overview

• Package size: 3.5×3.5×2.3 mm
• Color: White

Applications

• Streetlight
• High/Low Bay
• Spotlight
• Floodlight
• Area light

Product Version

• Previous: NVSW119F
• Current: NVSW119F-V1
• Next: -

Product Information

• Production status: Not for new design
• Start of sales: 2020/03
• Packaging quantity: 3000 per reel

Typical Spec

• Wattage: 2.07 W
• Forward Voltage: 2.96 V
• Luminous flux (nominal): 312 lm
• Condition:

  • I_F = 700 mA
  • T_j = 25 °C
  • Correlated Color Temperature: 5000 K
  • Color rendering: Ra ≥ 80, R9 > 0

Ranks (Luminous Flux table)
Header: CRI | CCT | BIN | MIN (lm) | MAX (lm)
R8000 | 2700K | D260 | 260 | 280
R8000 | 2700K | D280 | 280 | 300
R8000 | 2700K | D300 | 300 | 320
R8000 | 3000K | D260 | 260 | 280
R8000 | 3000K | D280 | 280 | 300
R8000 | 3000K | D300 | 300 | 320
R8000 | 3500K | D260 | 260 | 280
R8000 | 3500K | D280 | 280 | 300
R8000 | 3500K | D300 | 300 | 320
R8000 | 3500K | D320 | 320 | 340
R8000 | 4000K | D280 | 280 | 300
R8000 | 4000K | D300 | 300 | 320
R8000 | 4000K | D320 | 320 | 340
R8000 | 4500K | D280 | 280 | 300
R8000 | 4500K | D300 | 300 | 320
R8000 | 4500K | D320 | 320 | 340
R8000 | 5000K | D280 | 280 | 300
R8000 | 5000K | D300 | 300 | 320
R8000 | 5000K | D320 | 320 | 340
R8000 | 5700K | D280 | 280 | 300
R8000 | 5700K | D300 | 300 | 320
R8000 | 5700K | D320 | 320 | 340
R8000 | 6500K | D280 | 280 | 300
R8000 | 6500K | D300 | 300 | 320
R8000 | 6500K | D320 | 320 | 340
R9050 | 2700K | D200 | 200 | 220
R9050 | 2700K | D220 | 220 | 240
R9050 | 2700K | D240 | 240 | 260
R9050 | 3000K | D200 | 200 | 220
R9050 | 3000K | D220 | 220 | 240
R9050 | 3000K | D240 | 240 | 260
R9050 | 3500K | D220 | 220 | 240
R9050 | 3500K | D240 | 240 | 260
R9050 | 3500K | D260 | 260 | 280
R9050 | 4000K | D220 | 220 | 240
R9050 | 4000K | D240 | 240 | 260
R9050 | 4000K | D260 | 260 | 280
R9050 | 5000K | D220 | 220 | 240
R9050 | 5000K | D240 | 240 | 260
R9050 | 5000K | D260 | 260 | 280
R9050 | 5700K | D220 | 220 | 240
R9050 | 5700K | D240 | 240 | 260
R9050 | 5700K | D260 | 260 | 280

Downloads & data
Available: model-specific datasheet, photometric distribution data, SPICE and CAD files for design and engineering reference.

Features / Technical specifications

• Model: NVSW119F-V1
• Package size: 3.5 × 3.5 × 2.3 mm
• Color: White
• Output power: 2.07 W
• Forward voltage: 2.96 V
• Nominal luminous flux: 312 lm (at 5000 K, IF = 700 mA)
• Measurement conditions: IF = 700 mA, Tj = 25 °C, 5000 K, Ra ≥ 80, R9 > 0
• Production status: Not for new design
• Release date: 2020/03
• Quantity per reel: 3000
