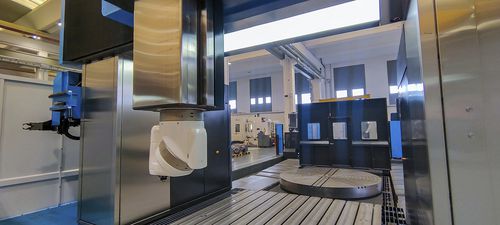

3-axis CNC milling machine FOX MTuniversalgantryISO 5
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- gantry
- Spindle mount
- ISO 5, HSK-100, Capto C8
- X travel
Min.: 5,000 mm
(196.85 in)Max.: 14,000 mm
(551.18 in)- Y travel
Min.: 3,000 mm
(118.11 in)Max.: 5,000 mm
(196.85 in)- Z travel
1,000 mm, 1,500 mm, 1,750 mm
(39.37 in, 59.06 in, 68.9 in)- Rotational speed
6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)- Power
37 kW, 42 kW, 52 kW
(50.31 hp, 57.1 hp, 70.7 hp)- Work feed X-axis
25 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
Min.: 10,000 kg
(22,046 lb)Max.: 15,000 kg
(33,069 lb)
Description
Surface - mm - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 / 3,000 / 3,500 - 1,750 / 2,500 /
Turning table Ø mm 1,250 - 3,000
SPINDLE SPECIFICATIONS
Maximum torque Nm - 1,298 / 1,375 / 620
