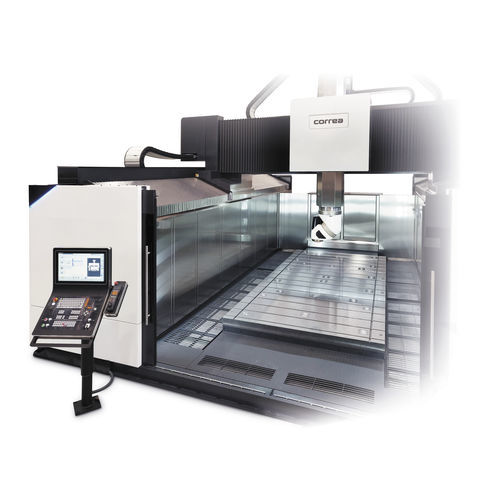

3-axis CNC milling machine ORIX TuniversalgantryHSK-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- gantry
- Spindle mount
- HSK-63, ISO 50, HSK-100
- X travel
Max.: 24,500 mm
(965 in)Min.: 3,500 mm
(138 in)- Y travel
3,250 mm, 4,250 mm, 5,250 mm
(128 in, 167 in, 207 in)- Z travel
1,250 mm, 1,500 mm, 2,000 mm
(49 in, 59 in, 79 in)- Power
35 kW, 52 kW
(47.59 hp, 70.7 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)
Description
TURNING TABLE
Surface Ø mm 2,000 - 3,000
Maximum load on the table - rpm - 120 - 150
WORKING CAPACITY
Distance between columns - mm - 4.150 - 5.150 - 6.150
SPINDLE SPECIFICATIONS
Maximum torque - Nm - 1.375 / 60 / 120
