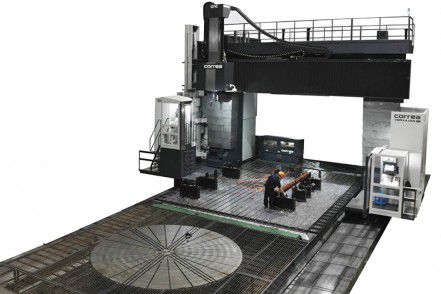

3-axis CNC milling machine VERXA MWTverticalgantryISO 5
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- ISO 5, HSK-100, Capto C8
- X travel
Max.: 29,500 mm
(1,161.42 in)Min.: 8,500 mm
(334.65 in)- Y travel
Max.: 7,600 mm
(299.21 in)Min.: 4,600 mm
(181.1 in)- Z travel
Max.: 2,000 mm
(78.74 in)Min.: 1,500 mm
(59.06 in)- Rotational speed
4,000 rpm, 6,000 rpm, 10,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
52 kW
(70.7 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
Max.: 15,000 kg
(33,069 lb)Min.: 10,000 kg
(22,046 lb)
Description
Surface mm 10,000 - 30,000 x 2,500 - 3,000 - 3,500
Turning table Ø mm 2,500 - 5,000
WORKING CAPACITY
Distance between columns - mm - 3,400-6,400
Distance between head nose (UAD) and table top - mm - 3,140 - 4,140
SPINDLE SPECIFICATIONS
Maximum torque Nm - 1,375
