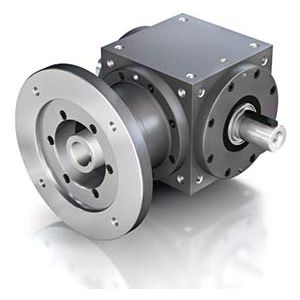

Bevel gearbox P-Version series
right angle200 - 500 Nm100 - 200 Nm

bevel gearbox
bevel gearbox
bevel gearbox
bevel gearbox
bevel gearbox
Add to favorites
Compare this product


Characteristics

Type
bevel
Shaft orientation
right angle
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 20 - 50 Nm, 50 - 100 Nm, 2 - 5 kNm
Shaft orientation
hollow-shaft
Performance
high-performance, high-torque, maintenance-free
Applications
shaft
Other characteristics
flange, motor
Rotational speed

Min.: 650 rpm (4,084.07 rad.min-1)

Max.: 7,500 rpm (47,123.89 rad.min-1)

Power

Min.: 1.6 kW (2.18 hp)

Max.: 38.4 kW (52.21 hp)

Description

The standard bevel gearbox PowerGear P-Version shows it’s strength in applications which depend on the following characteristics: High torque at smaller to medium input speeds Limited weight and smallest dimensions Sturdy, reliable and maintenance-free design Technical overview - Sizes - 12 gearbox sizes from P54 to P450 - Configurations - L, H, FL, FH - Ratios - from i = 1:1 to 5:1 - Shaft arrangement WA 1, WA 3, WA 13 - Input speed n1max - up to 7500 min-1 - Motor mounting direct mounting with hollow shaft/flange Configuration FL Input with hollow shaft and flange. Output with solid shaft on both sides or on one side. PowerGear FL Configuration L Input and output with solid shaft. Output on both sides or on one side. PowerGear L Configuration FH Input with hollow shaft and flange. Output with hollow shaft and feather key groove. PowerGear FH Configuration H Input with solid shaft. Output with hollow shaft and feather key groove.
