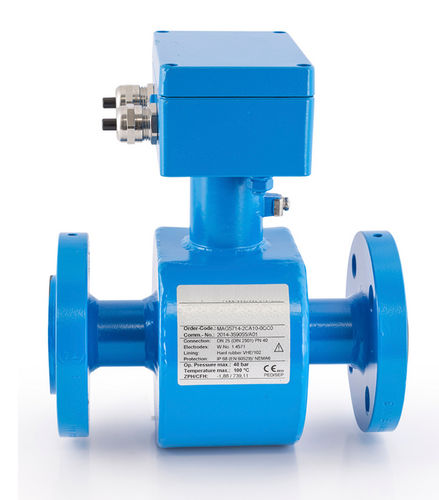

Electromagnetic flow sensor MI01

volumefor liquidsin-line

Electromagnetic flow Sensor DN40 Flange DIN 2501 PN40 remote version design, lining of measuring pipe made of Hard rubber VHE/102 18-36V diameter: - DN40 connection: - Flange DIN 2501 PN40 design: - remote design measuring tube: - stainless steel 1.4301 solenoid chamber: - steel flange: - steel coating: - Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015 lining of measuring pipe: - Hard rubber VHE/102 electrodes: - stainless steel 1.4571 error of measurement: - +/- 0,5% of the reading from 0,25 ms to 10m/s repeat accuracy: - +/- 0,15% of the reading from 0,25 ms to 10m/s operqting temerature: - +90°C protection class: - IP67 minimum conductivity media: - > 20 μS/cm max. flow rate: - 10 m/s flow rate final value: - 0,25 - 10 m/s flow rate range: - 1,13 - 45,24 m3/h wiring: - 2 x M16 x 1,5 wire: - magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m power supply: - 18-36V analogue output: - 4 - 20mA
