Circular seal FD01NBRflangeoil
Add to favorites
Compare this product
Characteristics
- Configuration
- circular
- Material
- NBR
- Application
- flange
- Fluid
- oil, for gas, for steam
- Temperature limit
Max.: 160 °C
(320 °F)Min.: -100 °C
(-148 °F)- Pressure limit
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)- Diameter
10 mm
(0.394 in)- Outer diameter
46 mm
(1.811 in)
Description

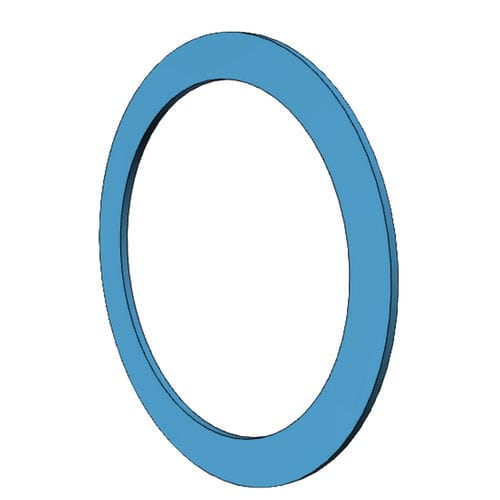

flange seal DN10 46x18x2 PN10/16/25/40 made of Klingersil C 4400 acc. rule EN1514-1 IBC
material: - Klingersil C 4400
norm: - EN1514-1
form: - IBC
S: - 2
Dimension tolerance: - acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature: - -100°C up to +160°C, max. +400°C with 0 bar pressure
approval: - DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for: - oil, gas, steam
