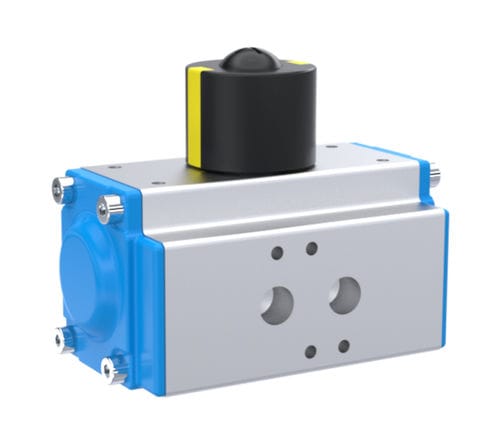

Pneumatic valve actuator AN02

90°screwdouble-acting

pneumatic actuator double acting with 90° pan angle GD-040 according to ISO 5211 F03-F05 for control pressure 2 bars to 8 bars SIL - safety integrity level: - SIL 3 ISO flange 5211: - F03-F05 stem intake: - 11mm screw depth: - 14mm length: - 120mm width: - 60,5mm high: - 97mm actuator: - GD-040 actuator informations: - Robust, high-quality design for aggressive environments. Adjustable by 5° seals: - NBR control medium: - filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4] installation position: - any position product description: - Compact, double-acting, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator.
