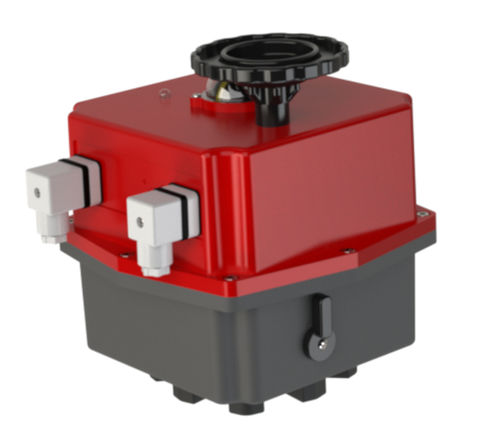

Electric valve actuator AN01rotaryscrewIP67
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Technology
- screw
- Protection class
- IP67
- Norms
- ISO
- Other characteristics
- compact, with handwheel, DC
- Torque
140 Nm
(103.26 ft.lb)- Voltage
Min.: 24 V
Max.: 240 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)- Rotation angle
90 °
- Operating time
34 s
- Weight
Min.: 0.9 kg
(1.98 lb)Max.: 5.2 kg
(11.46 lb)
Description
Electronic actuator S140 - 24-240V AC/DC 140Nm torque 75% ED IP67
stem intake: - 22mm
screw depth: - 24mm
duty rating: - 75%
drive sprocket design: - octagon
length: - 235mm
width: - 214mm
high: - 254mm
actuator informations: - This drive can be operated with voltages from 24V to 240V AC/DC.
body material: - corrosion resistant synthetic body polyamid PA6
installation position: - any position, not upside down
product description: - Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with brushless motor, automatic voltage sensing and automatic temperature control.
