Polyurethane tube UBS seriesfor airsmall bend radiussmooth
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- polyurethane
- Other characteristics
- flexible, multi-color, smooth, small bend radius
- Inner diameter
2.5 mm, 4 mm, 5 mm, 6.5 mm, 8 mm
(0.098 in, 0.157 in, 0.197 in, 0.256 in, 0.315 in)- Outer diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Pressure
Min.: 0 MPa
Max.: 1 MPa
- Temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)- Delivered length
20 m, 100 m
(65'07" , 328'01" )
Description

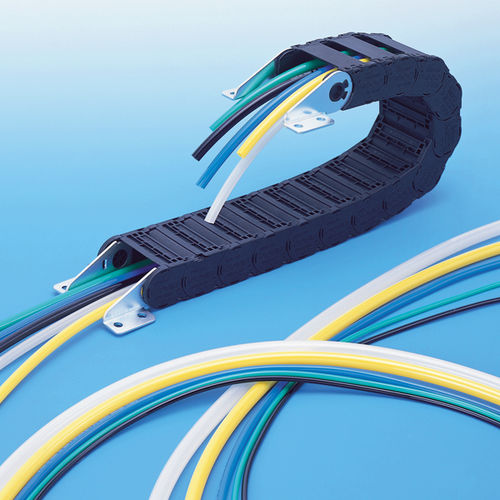

Suitable for piping which goes through cable guides and protectors.
The friction factor is 1/3 of PISCO's most versatile polyurethane tubings (UB).
The coefficient of friction is 1/3 by the test measured by sliding a weight on the material of Low-Friction polyurethane vs. Polyurethane (UB) Tubing.
5 colors are available for identification and color-coding.
The cut marks at 500mm interval are printed on the tube.
They are useful to cut tubing.
The marks are just as a guide and the accuracy is not guaranteed.
For price options, please contact our distributor near your office.
