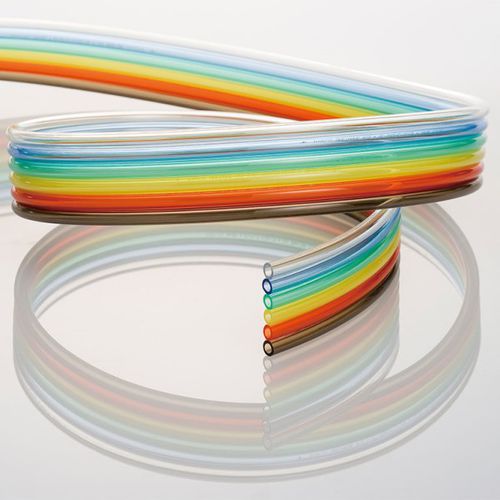

Multi-color tube UCQ series
for waterfor airpolyurethane

Multi-color tube - UCQ series - NIHON PISCO CO., Ltd. - for water / for air / polyurethane
Multi-color tube - UCQ series - NIHON PISCO CO., Ltd. - for water / for air / polyurethane
Add to favorites
Compare this product
Go to the NIHON PISCO CO., Ltd. website for more information

Characteristics

Use
for water, for air
Material
polyurethane
Other characteristics
flexible, multi-color, smooth, multiple, small bend radius
Inner diameter

Max.: 8 mm
(0.315 in)

Min.: 2.5 mm
(0.098 in)

Outer diameter

Max.: 12 mm
(0.472 in)

Min.: 4 mm
(0.157 in)

Pressure

Max.: 0.6 MPa

Min.: 0 MPa

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Delivered length

20 m, 100 m
(65'07" , 328'01" )

Description

Eliminate tangling issues and enable easy tracing and troubleshooting. Extremely flexible and it is easy tracing and identifying the piping. Extremely flexible polyurethane (UC). The cut marks at 500mm interval are printed on the tube. They are useful to cut tubing. The marks are just as a guide and the accuracy is not guaranteed. As built-to-order production, No. of cores, configuration and color are freely arranged. No. of cores ：3-6 cores, Configuration ：Ribbon or pyramid ,Color ：10 color combination. For price options, please contact our distributor near your office. https://www.pisco.co.jp/en/company/network/

Catalogs

UCQ series
UCQ series
2 Pages
