Spiral tube ULF seriesfor waterfor airpolyurethane
Add to favorites
Compare this product
Characteristics
- Use
- for water, for air
- Material
- polyurethane
- Other characteristics
- flexible, multi-color, high-resistance, small bend radius, spiral, double
- Inner diameter
Max.: 8 mm
(0.315 in)Min.: 2 mm
(0.079 in)- Outer diameter
Max.: 12 mm
(0.472 in)Min.: 3 mm
(0.118 in)- Pressure
Max.: 0.8 MPa
Min.: 0 MPa
- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Delivered length
Max.: 1,550 mm
(61.02 in)Min.: 80 mm
(3.15 in)
Description

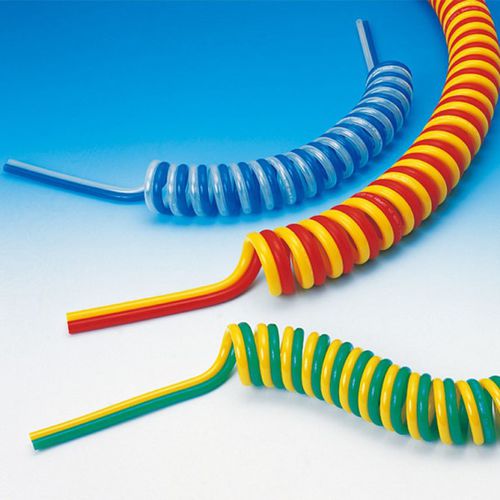

Twin spiral coiled tubing.
Double tube coiled tubing is ideal for application where repeat-bending and twisting is required.
Flexible polyurethane (UB)
Tube color combination can be chosen from 10 colors.
For price options, please contact our distributor near your office. https://www.pisco.co.jp/en/company/network/
