Position measuring system APDIS

distancegaplaser

Overview
The APDIS Gap & Flush System by Nikon provides automated, non-contact, in-line measurement of panel and closure gap and flush for vehicle-on-wheels, enabling moving-line inspection and process feedback for production quality control.

Quality Perception and Control
Panel and closure gap and flush affect customer perception of vehicle and brand quality. Reliable, repeatable measurement of these features enables real-time process feedback and automated quality control while the vehicle remains in motion.

APDIS Laser Radar Technology
APDIS Laser Radar technology, already deployed globally in automotive inspection, delivers absolute, fast and accurate measurements suitable for shop-floor environments and moving-line applications.

Integrated, Automated, Flexible

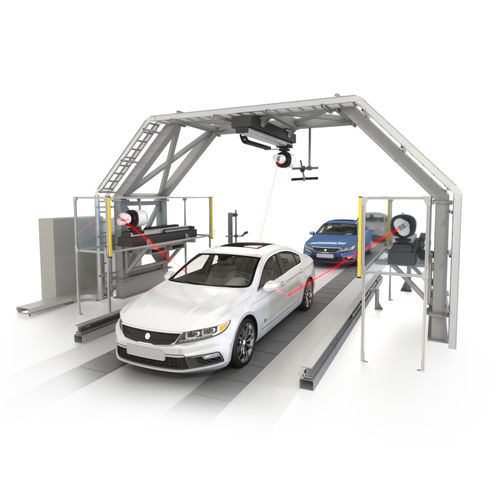

Typical configurations use three Laser Radars to cover a large measurement volume. Measurements are synchronised with conveyor/vehicle movement and the system is configurable for different vehicle variants and body styles.

Large Stand-Off, Safe Operation
Measurements are taken at a large stand-off distance using a single linear movement, minimising collision risk with the vehicle and ensuring operator safety.

Product Highlights

• Simpler installation: large stand-offs and linear rails reduce programming and installation complexity; independent tracking and alignment remove the need for conveyor interlocks.
• Easier modification: Laser Radar movement is synchronised with the vehicle, enabling offline modifications without stopping the line.
• Reduced complexity: no complex robot programming required; built-in safety around the Laser Radars and an open-frame design minimise production disruption.

Brochures and Documentation
Manufacturer documentation and brochures are available for APDIS Laser Radar, APDIS Automotive solutions and APDIS Gap & Flush (product literature and brochure PDFs provided by the manufacturer).

Specifications / technical data

• Product type: Non-contact gap and flush measuring system for vehicle-on-wheels (moving-line inspection).
• Measurement method: APDIS Laser Radar technology — absolute, fast measurement.
• Configuration: Multi-sensor arrangement (typically three Laser Radars) covering a large measurement volume.
• Synchronization: Measurements synchronised with conveyor/vehicle movement for moving-line operation.
• Stand-off: Large stand-off distance enabling safe operation and reducing collision risk.
• Integration: Linear movement and independent tracking aligned with vehicle movement; configurable for different vehicle variants.
• Installation benefits: Independent tracking and alignment remove need for conveyor interlocks; linear rails simplify programming and installation.
• Production impact: Open-frame design and built-in safety minimise production-line disruption.
