Robotic handling cell P3538

machiningfor machine tendingunloading

CNC robot arm machining solutions automate loading/unloading and enable combined production lines by integrating articulated robots with flat-bed CNC lathes for shafts, discs and special-shaped turned parts. Configurable for small-batch production while preserving existing CNC tooling, programs and manual operations where required.

Processing capabilities / Typical applications

• Target parts: shafts, disc parts and special-shaped turned components.
• Typical operations: part loading/unloading, turning, facing and basic handling for subsequent operations.

Suitable machines

• Primary: flat-bed CNC machines P3518 / P3538.
• Also applicable: other CNC lathe types subject to configuration and fixtures.

Standard combination (face-to-face of machine)

• Face-to-face machine layout enabling a compact combined production line suitable for small-quantity batches.
• Optional collaborative robot variant available to allow safe human-machine interaction.

Arm robot types (mounting / configuration options)

• Ground-fixed mounting.
• Top-mounted configuration (including travel axis).
• Underslung (support) mounting (including travel axis).
• Mobile ground-mounted on travel base (including travel axis).

Production combination examples / gallery

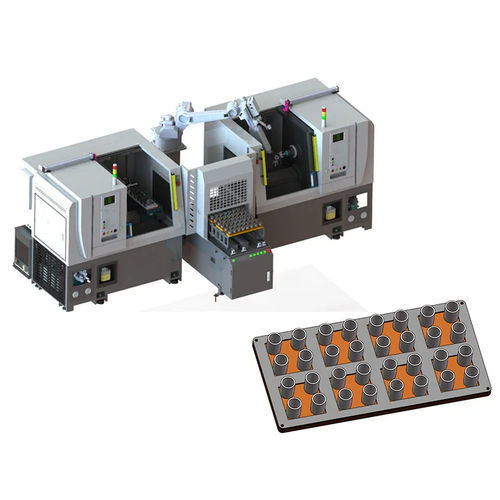

• Examples: two P3538 machines with an arm robot in a combined production line.
• Standard face-to-face machine combination with robot loader.
• Gallery: several layout and installation variants illustrating integration options.

Characteristics / technical specifications

• No modification required to CNC tool change procedures, program settings or manual clamping when integrated into the production line.
• Designed for automated small-batch production and combined-line manufacturing.
• Optional collaborative robot improves operator safety and supports human-machine cooperation.
• Multiple robot mounting options supported (ground-fixed, top-mounted with travel axis, underslung with travel axis, mobile ground-mounted with travel axis).
• Typical part focus: shafts, discs and other special-shaped turned parts.
