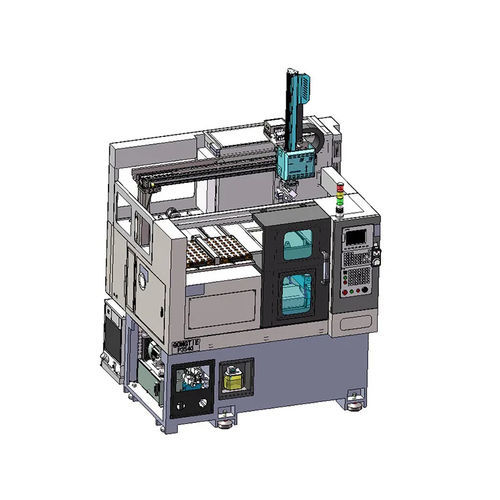

  • Modular gantry loading systems for CNC lathe automation combining gantry robots with a range of stocker and feeding solutions to handle disks, special-shaped parts and shaft/axle parts for automated loading/unloading on CNC lathes.


Gantry robot with stocker
  • Processing parts: disks, special-shaped parts.
  • Stocker size example: 250 × 400 mm (configuration: up to 2 stockers).
  • Workpiece limit: diameter/length ≤ 50 mm.
  • Suitable CNC machine examples: P3538.


Feeding from back side
  • Processing parts: axle/shaft parts such as smooth axles and screws.
  • Workpiece arrangement / capacity: B550 — dia 6–25 mm; length 100–550 mm; B300 — dia 6–25 mm; length 100–300 mm.
  • Use case: for axle parts that accept lower axial-direction precision requirements.
  • Suitable CNC machine examples: P3518 / P3538.


Axle parts feeding from front
  • Processing parts: axle/shaft parts such as smooth axles and screws.
  • Workpiece range: dia 6–25 mm; length 80–200 mm.
  • Use case: for axle parts requiring higher axial-direction precision; overturn (flip) device can be integrated for double-side processing.
  • Suitable CNC machine examples: P3518 / P3538.


Axle parts — convey belt
  • Processing parts: axle/shaft parts such as smooth axles and screws.
  • Workpiece range: dia 6–30 mm; length 80–300 mm.
  • Specification: overturn device acceptable for double-side processing; continuous feeding via conveyor belt.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Single layer stocker
  • Processing parts: disks, special-shaped parts, stepped shaft parts.
  • Stocker sizes: 250 × 400 mm and 250 × 500 mm (up to 2 stockers typical).
  • Option: overturn device acceptable to process both sides.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Double layers stocker
  • Processing parts: disks, special-shaped parts, stepped shaft parts.
  • Stocker sizes: 250 × 400 mm and 250 × 500 mm (up to 4 stockers typical).
  • Option: overturn device acceptable to process both sides.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Multi layers / double layers / single layer variants (overview)
  • Multi-layer stocker example: 250 × 400 mm per layer; total up to 12 stockers in high-density configurations.
  • Double-layer stocker: up to 4 stockers typical.
  • Single-layer stocker: up to 2 stockers typical.
  • Overturn devices can be integrated where double-side processing is required.


12 stations stocker
  • Processing parts: disks.
  • Workpiece range: clamping diameter 30–170 mm; supporting inner diameter 50–220 mm.
  • Option: overturn device acceptable for double-side processing.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Chain board for shaft parts
  • Processing parts: shaft/axle parts with step, special-shaped parts.
  • Workpiece range: shaft parts within approx. 50 mm diameter and up to 300 mm length.
  • Option: overturn device acceptable for double-side processing; continuous feeding via chain board.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Chain board for disk parts
  • Processing parts: disk parts.
  • Workpiece range: diameter 30–130 mm.
  • Option: overturn device acceptable for double-side processing.
  • Suitable CNC machines: Gongtie automatic CNC machines with gantry robot.


Technical specifications
  • Handled part types: disks, special-shaped parts, shaft/axle parts (smooth axles, screws), stepped shafts.
  • Stocker sizes observed: 250 × 400 mm; 250 × 500 mm.
  • Workpiece diameter ranges (by solution): from 6 mm up to ~170 mm (examples: 6–25 mm, 6–30 mm, 30–130 mm, 30–170 mm).
  • Workpiece length ranges (by solution): examples include 80–200 mm, 80–300 mm, 100–300 mm, 100–550 mm.
  • Stocker densities: single layer (2 stockers), double layer (up to 4), multi-layer high density (up to 12 or more).
  • Special features: overturn (flip) devices for double-side processing; convey belts and chain-board solutions for continuous feeding.
  • Typical compatible CNC models: P3518, P3538 and other Gongtie automatic CNC machines integrated with gantry robots.
