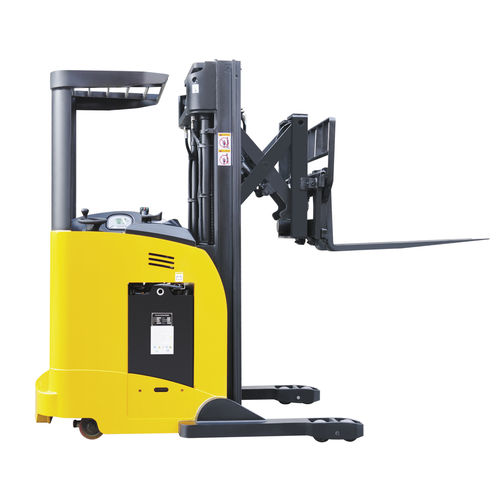

Electric reach truck CQDH18C stand-onhandlingwaterproof
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- stand-on
- Applications
- handling
- Other characteristics
- 3-wheel, low-noise, waterproof
- Carrying capacity
1,000 kg, 1,800 kg
(2,204.6 lb, 3,968.3 lb)- Lifting height
3,000 mm, 3,500 mm, 4,000 mm, 5,000 mm, 6,000 mm
(118.11 in, 137.8 in, 157.48 in, 196.85 in, 236.22 in)- Overall width
1,040 mm, 1,298 mm
(40.9 in, 51.1 in)- Overall length
2,716 mm
(106.9 in)- Load center distance
600 mm
(23.6 in)- Axle loading with maximum load front
3,330 kg, 3,480 kg
(7,341.4 lb, 7,672.1 lb)- Axle loading with maximum load rear
1,970 kg, 2,120 kg
(4,343.1 lb, 4,673.8 lb)- Axle loading without load front
1,270 kg
(2,799.9 lb)- Axle loading without load rear
2,380 kg
(5,247 lb)- Height of mast when lowered
Max.: 2,835 mm
(111.6 in)Min.: 2,125 mm
(83.7 in)- Free lift
1,575 mm, 1,700 mm, 1,825 mm, 2,000 mm, 2,125 mm
(62 in, 66.9 in, 71.9 in, 78.7 in, 83.7 in)- Overall height with mast raised
Max.: 7,381 mm
(290.6 in)Min.: 3,900 mm
(153.5 in)- Height to top of overhead guard
2,246 mm
(88.4 in)- Length to fork face
1,618 mm
(63.7 in)- Fork carriage width
940 mm
(37 in)- Ground clearance under mast with load
49 mm
(1.9 in)- Turning circle radius
1,848 mm
(72.8 in)- Travel speed
6.5 km/h, 7 km/h
(4 mph, 4.3 mph)- Lifting speed
0.2 m/s, 0.3 m/s
(0.656 ft/s, 0.984 ft/s)- Lowering speed
0.312 m/s, 0.32 m/s
(1.024 ft/s, 1.05 ft/s)- Gradeability
5 %, 12 %
- Rated output
3 kW
(4.1 hp)- Noise level
75 dB
Description
• AC motor drive with high efficiency, no need to replace carbon
brush, very good ramp starting performance.
• Two model function can control the speed of lift and lowering.
• Low center of gravity, excellent stability for opération.
• Small turning radius, good turning performance.
• With advanced variable frequencyAC motor free maintenance
and excellent performance.
• Can control the speed of driving and lifting in the same time.
• Shock absorber system support good noise réduction.
• Wide view mast and clear visibility.
• With full free lifting, can work in the limited roof environment.
• Import proportional hydraulic valve, adjustable speed for
lifting/lowering.
• Multi-function display: battery status, hour meter, fault code, slow
running State, etc
• Big power controller (350A) with big power electric motor(1 OKW),
support excellent reliability.
• Double scissors reach fork let the reach distance up to 1000mm.
• The mast fixed with the frame, when fork move forward, the mast
can become the balance weight, reduce the total service weight.
• With advanced 36V electric control system, smaller electric
current, ensure the reliability of the battery system.
