Electric reach truck CQD15
side-facing seatedhandling3-wheel

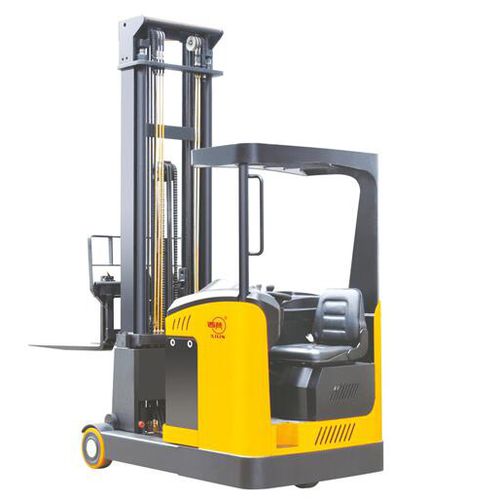

Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel
Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel
Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel - image - 2
Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel - image - 3
Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel - image - 4
Electric reach truck - CQD15 - NINGBO RUYI JOINT STOCK CO., LTD - side-facing seated / handling / 3-wheel - image - 5
Add to favorites
Compare this product
Go to the NINGBO RUYI JOINT STOCK CO., LTD website for more information

Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling
Other characteristics
3-wheel
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

3,000 mm, 5,000 mm, 6,200 mm, 7,400 mm, 8,000 mm
(118.11 in, 196.85 in, 244.09 in, 291.34 in, 314.96 in)

Overall width

1,200 mm
(47.2 in)

Overall length

2,433 mm
(95.8 in)

Load center distance

600 mm
(23.6 in)

Axle loading with maximum load front

1,050 kg, 1,830 kg
(2,314.9 lb, 4,034.5 lb)

Axle loading with maximum load rear

3,080 kg, 3,860 kg
(6,790.2 lb, 8,509.8 lb)

Axle loading without load front

2,017 kg
(4,446.7 lb)

Axle loading without load rear

1,393 kg
(3,071 lb)

Height of mast when lowered

Max.: 3,390 mm
(133.5 in)

Min.: 2,090 mm
(82.3 in)

Free lift

1,700 mm, 2,100 mm, 2,500 mm, 2,700 mm
(66.9 in, 82.7 in, 98.4 in, 106.3 in)

Overall height with mast raised

Max.: 8,800 mm
(346.5 in)

Min.: 3,800 mm
(149.6 in)

Height to top of overhead guard

2,140 mm
(84.3 in)

Length to fork face

1,300 mm
(51.2 in)

Fork carriage width

928 mm
(36.5 in)

Ground clearance under mast with load

80 mm
(3.1 in)

Turning circle radius

1,780 mm
(70.1 in)

Travel speed

8 km/h, 8.3 km/h
(5 mph, 5.2 mph)

Lifting speed

0.24 m/s, 0.3 m/s
(0.787 ft/s, 0.984 ft/s)

Lowering speed

0.36 m/s, 0.45 m/s
(1.181 ft/s, 1.476 ft/s)

Gradeability

10 %

Rated output

3 kW
(4.1 hp)

Noise level

70 dB

Description

Standard • AC control system. • Powering steering system (EPS). • Multi-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc. • Manual multi-valve. • Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left. • German ZF brand gear box. • Adjustable steering wheel. • With traveling speed limited device when forks at high level. • Electronic height limited device. Option • Electronic multi valve. • Finger-tip control stick. • Side shift. • Height selection and height position system. • LCD display and camera (LCD for cold storage are available). • Travel/back-up flashing lights. • Side-way battery.
